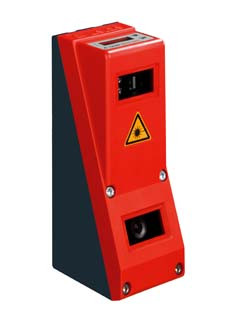

50111332 | LRS 36/PB - Line profile sensor
Описание
Характеристики
Информация для заказа
Basic data | |||||||
---|---|---|---|---|---|---|---|
Series | 36 | ||||||
Contains | LxSsoft configuration software | ||||||
Application | 3D object detection | ||||||
Special design | |||||||
Special design | Synchronization input | ||||||
Optical data | |||||||
Light source | Laser, Red | ||||||
Laser class | 2M, IEC/EN 60825-1:2007 | ||||||
Measurement data | |||||||
X-axis detection range | 150 ... 600 mm | ||||||
Z-axis detection range | 200 ... 800 mm | ||||||
Minimum object size, x-axis | 2 ... 3 mm | ||||||
Minimum object size, z-axis | 2 ... 6 mm | ||||||
Electrical data | |||||||
Performance data | |||||||
Supply voltage UB | 18 ... 30 V, DC | ||||||
Inputs | |||||||
Number of activation inputs | 1 Piece(s) | ||||||
Outputs | |||||||
Number of digital switching outputs | 2 Piece(s) | ||||||
Switching output 1 | |||||||
Switching element | Transistor, Push-pull | ||||||
Number of digital switching outputs | 2 Piece(s) | ||||||
Switching output 2 | |||||||
Switching element | Transistor, Push-pull | ||||||
Number of digital switching outputs | 2 Piece(s) | ||||||
Timing | |||||||
Response time | 10 ms | ||||||
Interface | |||||||
Type | Ethernet, PROFIBUS DP | ||||||
Connection | |||||||
Number of connections | 3 Piece(s) | ||||||
Connection 1 | |||||||
Type of connection | Connector | ||||||
Function | Signal IN, Signal OUT, Voltage supply | ||||||
Thread size | M12 | ||||||
Type | Male | ||||||
Material | Metal | ||||||
No. of pins | 8 -pin | ||||||
Encoding | A-coded | ||||||
Number of connections | 3 Piece(s) | ||||||
Connection 2 | |||||||
Type of connection | Connector | ||||||
Function | Data interface, Configuration interface | ||||||
Thread size | M12 | ||||||
Type | Female | ||||||
Material | Metal | ||||||
No. of pins | 4 -pin | ||||||
Encoding | D-coded | ||||||
Number of connections | 3 Piece(s) | ||||||
Connection 4 | |||||||
Type of connection | Connector | ||||||
Function | <td align="center" class="val" colspan="6</tr>
Основные | |
---|---|
Производитель | Axis |
- Цена: Цену уточняйте
