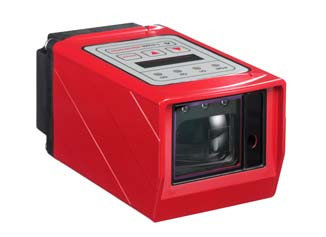

50041203 | ODSL 30/D232-30M-S12 - Optical distance sensor
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | 30 | ||||||
| Contains | Mounting bracket | ||||||
| Application | Length measurement in material cutting, Collision protection of cranes / gantry cranes, Fill-level monitoring, Positioning of skillet systems and side-tracking skates | ||||||
| Type of scanning system | Cooperative target | ||||||
Optical data | |||||||
| Light source | Laser, Red | ||||||
| Laser class | 2, IEC/EN 60825-1:2007 | ||||||
| Light-spot size [at sensor distance] | 6 mm [10,000 mm] | ||||||
Measurement data | |||||||
| Measurement range | 0 ... 65,000 mm | ||||||
| Resolution | 1.0 mm | ||||||
| Accuracy | 2 mm | ||||||
| Repeatability | 2 mm | ||||||
| Measurement time | 30 ... 100 ms | ||||||
| Referencing | Yes | ||||||
| Optical distance measurement principle | Phase measurement | ||||||
Electrical data | |||||||
Performance data | |||||||
| Supply voltage UB | 10 ... 30 V, DC | ||||||
Inputs | |||||||
| Number of digital switching inputs | 2 Piece(s) | ||||||
Digital switching input 1 | |||||||
| Function | Programmable | ||||||
| Number of digital switching inputs | 2 Piece(s) | ||||||
Outputs | |||||||
| Number of digital switching outputs | 2 Piece(s) | ||||||
Switching output 1 | |||||||
| Switching element | Transistor, Push-pull | ||||||
| Number of digital switching outputs | 2 Piece(s) | ||||||
Switching output 2 | |||||||
| Switching element | Transistor, Push-pull | ||||||
| Number of digital switching outputs | 2 Piece(s) | ||||||
Interface | |||||||
| Type | RS 232 | ||||||
Connection | |||||||
Connection 1 | |||||||
| Type of connection | Connector | ||||||
| Thread size | M12 | ||||||
| Material | Plastic | ||||||
| No. of pins | 8 -pin | ||||||
Mechanical data | |||||||
| Dimension (W x H x L) | 79 mm x 69 mm x 150 mm | ||||||
| Housing material | Metal, Diecast aluminum | ||||||
| Lens cover material | Glass | ||||||
| Net weight | 650 g | ||||||
Operation and display | |||||||
| Operational controls | Membrane keyboard, LC Display | ||||||
Environmental data | |||||||
| Ambient temperature, operation | -10 ... 45 °C | ||||||
| Ambient temperature, storage | -40 ... 70 °C | ||||||
Basic data- Цена: Цену уточняйте
