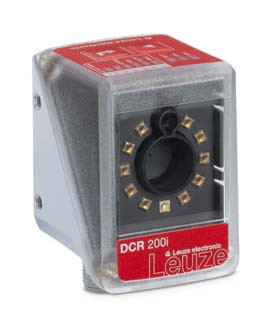

50141238 | DCR 202i FIX-L1-102-R3-P-F001 - Stationary 2D-code reader
Описание
Информация для заказа
Basic data | |||||||
---|---|---|---|---|---|---|---|
Series | DCR 200i | ||||||
Chip | CMOS | ||||||
Special design | |||||||
Special design | Polarization filter | ||||||
Functions | |||||||
Software functions | Reading of 1D codes, Reading of 2D codes | ||||||
Read data | |||||||
Code types, readable | Aztec, 2/5 Interleaved, Codabar, Code 128, Code 32, Code 39, Code 93, Data Matrix Code, EAN 128, EAN 8/13, GS1 Databar, GS1 Databar Omnidirectional, GS1 Databar QR code, GS1 Databar Stacked, PDF417, Pharma Code, QR code, UPC | ||||||
Optical data | |||||||
Reading distance | 50 ... 800 mm | ||||||
Light source | LED, Red | ||||||
Transmitted-signal shape | Pulsed | ||||||
Camera resolution, horizontal | 1,280 px | ||||||
Camera resolution, vertical | 960 px | ||||||
Modulus size | 0.35 ... 1 mm | ||||||
Electronic shutter speed | 0.068 ... 5 ms | ||||||
Camera type | Monochrome | ||||||
Electrical data | |||||||
Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Performance data | |||||||
Supply voltage UB | 18 ... 30 V, DC | ||||||
Average power consumption | 8 W | ||||||
Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Inputs | |||||||
Number of digital switching inputs | 2 Piece(s) | ||||||
Switching inputs | |||||||
Voltage type | DC | ||||||
Switching voltage | < 10V high, > 17V low at VIN = 24V | ||||||
Switching principle | NPN | ||||||
Number of digital switching inputs | 2 Piece(s) | ||||||
Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Outputs | |||||||
Number of digital switching outputs | 2 Piece(s) | ||||||
Switching outputs | |||||||
Voltage type | DC | ||||||
Switching current, max. | 100 mA | ||||||
Number of digital switching outputs | 2 Piece(s) | ||||||
Switching output 1 | |||||||
Switching element | Transistor, NPN | ||||||
Switching principle | GND switching | ||||||
Number of digital switching outputs | 2 Piece(s) | ||||||
Switching output 2 | |||||||
Switching element | Transistor, NPN | ||||||
Switching principle | GND switching | ||||||
Number of digital switching outputs | 2 Piece(s) | ||||||
Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Interface | |||||||
Type | Ethernet, RS 232, RS 422 | ||||||
RS 232 | |||||||
- Цена: Цену уточняйте
