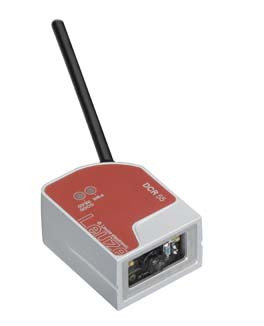

50136772 | DCR55M2/R2 - Stationary 2D-code reader
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | DCR 55 | ||||||
Functions | |||||||
| Software functions | Reading of 2D codes, Reading of 1D codes | ||||||
Read data | |||||||
| Code types, readable | 2/5 Hong Kong, 2/5 Interleaved, 2/5 NEC, 2/5 Straight, Australian Post, Aztec, BC412, Canada Post, Codabar, Codablock F, Code 11, Code 128, Code 32, Code 39, Code 49, Code 93, Data Matrix Code, EAN/UPC, GS1 Databar, HanXin, Intelligent Mail, Japan Post, KIX Code, Korea Post | ||||||
Optical data | |||||||
| Reading distance | 30 ... 425 mm | ||||||
| LED group | Exempt group (in acc. with EN 62471:2006) | ||||||
| Camera resolution, horizontal | 1,280 px | ||||||
| Camera resolution, vertical | 960 px | ||||||
| Modulus size | 0.127 ... 0.528 mm | ||||||
Electrical data | |||||||
Performance data | |||||||
| Supply voltage UB | 4.75 ... 5.25 V, DC | ||||||
| Current consumption, max. | 425 mA | ||||||
Inputs | |||||||
| Number of digital switching inputs | 1 Piece(s) | ||||||
Digital switching input 1 | |||||||
| Function | Reading gate | ||||||
| Number of digital switching inputs | 1 Piece(s) | ||||||
Outputs | |||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Switching outputs | |||||||
| Voltage type | DC | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Switching output 1 | |||||||
| Switching element | Transistor, NPN | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Interface | |||||||
| Type | RS 232 | ||||||
RS 232 | |||||||
| Function | Process | ||||||
| Transmission speed | 9,600 ... 115,200 Bd | ||||||
| Data format | configurable | ||||||
| Type | RS 232 | ||||||
Connection | |||||||
| Number of connections | 1 Piece(s) | ||||||
Connection 1 | |||||||
| Type of connection | Cable | ||||||
| Function | Signal IN, Data interface, Signal OUT, Voltage supply | ||||||
| Cable length | 2,000 mm | ||||||
| Sheathing material | PUR | ||||||
| Cable color | Black | ||||||
| Number of conductors | 6 -wire | ||||||
| Number of connections | 1 Piece(s) | ||||||
Mechanical data | |||||||
| Design | Cubic | ||||||
| Dimension (W x H x L) | 31.5 mm x 20 mm x 40.3 mm | ||||||
| Housing material | Metal, Diecast aluminum | ||||||
| Lens cover material | Plastic | ||||||
Basic data- Цена: Цену уточняйте
