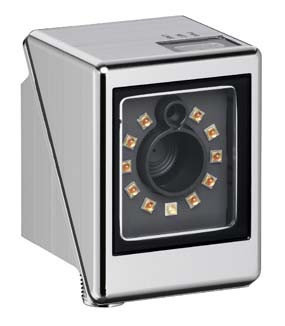

50134098 | DCR 202i FIX-F1-102-R3-V - Stationary 2D-code reader
Описание
Информация для заказа
Basic data | |||||||
---|---|---|---|---|---|---|---|
Series | DCR 200i | ||||||
Chip | CMOS | ||||||
Functions | |||||||
Software functions | Reading of 1D codes, Reading of 2D codes | ||||||
Read data | |||||||
Code types, readable | EAN 8/13, 2/5 Interleaved, Aztec, Codabar, Code 128, Code 32, Code 39, Code 93, Data Matrix Code, EAN 128, GS1 Databar, GS1 Databar Omnidirectional, GS1 Databar QR code, GS1 Databar Stacked, PDF417, Pharma Code, QR code, UPC | ||||||
Optical data | |||||||
Reading distance | 70 ... 360 mm | ||||||
Light source | LED, Red | ||||||
Transmitted-signal shape | Pulsed | ||||||
Camera resolution, horizontal | 1,280 px | ||||||
Camera resolution, vertical | 960 px | ||||||
Modulus size | 0.19 ... 0.5 mm | ||||||
Electronic shutter speed | 0.068 ... 5 ms | ||||||
Camera type | Monochrome | ||||||
Electrical data | |||||||
Protective circuit | Short circuit protected, Polarity reversal protection | ||||||
Performance data | |||||||
Supply voltage UB | 18 ... 30 V, DC | ||||||
Average power consumption | 8 W | ||||||
Protective circuit | Short circuit protected, Polarity reversal protection | ||||||
Inputs | |||||||
Number of digital switching inputs | 1 Piece(s) | ||||||
Switching inputs | |||||||
Voltage type | DC | ||||||
Number of digital switching inputs | 1 Piece(s) | ||||||
Protective circuit | Short circuit protected, Polarity reversal protection | ||||||
Outputs | |||||||
Number of digital switching outputs | 1 Piece(s) | ||||||
Switching outputs | |||||||
Voltage type | DC | ||||||
Switching current, max. | 100 mA | ||||||
Number of digital switching outputs | 1 Piece(s) | ||||||
Switching output 1 | |||||||
Switching element | MOSFET semiconductor | ||||||
Switching principle | +24 V switching | ||||||
Number of digital switching outputs | 1 Piece(s) | ||||||
Protective circuit | Short circuit protected, Polarity reversal protection | ||||||
Inputs/outputs selectable | |||||||
Number of inputs/outputs selectable | 2 Piece(s) | ||||||
Voltage type, outputs | DC | ||||||
Voltage type, inputs | DC | ||||||
Protective circuit | Short circuit protected, Polarity reversal protection | ||||||
Interface | |||||||
Type | Ethernet, RS 232, RS 422 | ||||||
RS 232 | |||||||
Function | Process | ||||||
Transmission speed | 4,800 ... 115,200 Bd | ||||||
Data format | Adjustable | ||||||
Start bit |
- Цена: Цену уточняйте
