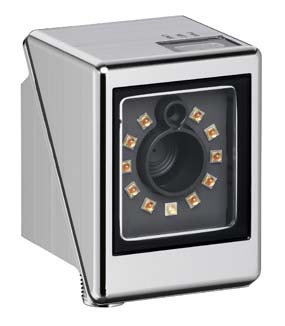

50134096 | DCR 202i FIX-N1-102-R3-V - Stationary 2D-code reader
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | DCR 200i | ||||||
| Chip | CMOS | ||||||
Functions | |||||||
| Software functions | Reading of 2D codes, Reading of 1D codes | ||||||
Read data | |||||||
| Code types, readable | GS1 Databar Stacked, 2/5 Interleaved, Aztec, Codabar, Code 128, Code 32, Code 39, Code 93, Data Matrix Code, EAN 128, EAN 8/13, GS1 Databar, GS1 Databar Omnidirectional, GS1 Databar QR code, PDF417, Pharma Code, QR code, UPC | ||||||
Optical data | |||||||
| Reading distance | 40 ... 120 mm | ||||||
| Light source | LED, Red | ||||||
| Transmitted-signal shape | Pulsed | ||||||
| Camera resolution, horizontal | 1,280 px | ||||||
| Camera resolution, vertical | 960 px | ||||||
| Modulus size | 0.127 ... 0.5 mm | ||||||
| Electronic shutter speed | 0.068 ... 5 ms | ||||||
| Camera type | Monochrome | ||||||
Electrical data | |||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Performance data | |||||||
| Supply voltage UB | 18 ... 30 V, DC | ||||||
| Average power consumption | 8 W | ||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Inputs | |||||||
| Number of digital switching inputs | 1 Piece(s) | ||||||
Switching inputs | |||||||
| Voltage type | DC | ||||||
| Number of digital switching inputs | 1 Piece(s) | ||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Outputs | |||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Switching outputs | |||||||
| Voltage type | DC | ||||||
| Switching current, max. | 100 mA | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Switching output 1 | |||||||
| Switching element | MOSFET semiconductor | ||||||
| Switching principle | +24 V switching | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Inputs/outputs selectable | |||||||
| Number of inputs/outputs selectable | 2 Piece(s) | ||||||
| Voltage type, outputs | DC | ||||||
| Voltage type, inputs | DC | ||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Interface | |||||||
| Type | Ethernet, RS 232, RS 422 | ||||||
RS 232 | |||||||
| Function | Process | ||||||
| Transmission speed | 4,800 ... 115,200 Bd | ||||||
| Data format | Adjustable | ||||||
| Start bit | |||||||
Basic data- Цена: Цену уточняйте
