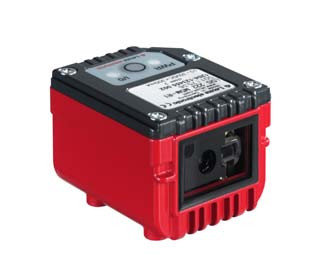

50117536 | LSIS 222 M5M-R1 - Stationary 2D-code reader
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | LSIS 22x | ||||||
Functions | |||||||
| Software functions | Reading of 2D codes, Reading of 1D codes | ||||||
Read data | |||||||
| Code types, readable | 2/5 Interleaved, Aztec, Codabar, Codablock, Code 128, Code 39, Code 93, Composite Codes, Data Matrix Code, EAN 128, EAN 8/13, EAN Addendum, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, GS1 Databar Omnidirectional, GS1 Databar Stacked, GS1 Databar Truncated, Maxicode, Micro PDF, Micro QR, PDF417, QR code, UPC | ||||||
Optical data | |||||||
| Reading distance | 50 ... 330 mm | ||||||
| Camera resolution, horizontal | 844 px | ||||||
| Camera resolution, vertical | 640 px | ||||||
| Modulus size | 0.127 ... 1 mm | ||||||
Electrical data | |||||||
| Protective circuit | Polarity reversal protection, Overvoltage protection, Short circuit protected | ||||||
Performance data | |||||||
| Supply voltage UB | 10 ... 30 V, DC | ||||||
| Current consumption, max. | 300 mA | ||||||
| Protective circuit | Polarity reversal protection, Overvoltage protection, Short circuit protected | ||||||
Inputs | |||||||
| Number of digital switching inputs | 1 Piece(s) | ||||||
Switching inputs | |||||||
| Voltage type | DC | ||||||
| Switching voltage | VIN | ||||||
| Number of digital switching inputs | 1 Piece(s) | ||||||
| Protective circuit | Polarity reversal protection, Overvoltage protection, Short circuit protected | ||||||
Outputs | |||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Switching outputs | |||||||
| Voltage type | DC | ||||||
| Switching voltage | VIN | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
| Protective circuit | Polarity reversal protection, Overvoltage protection, Short circuit protected | ||||||
Interface | |||||||
| Type | RS 232 | ||||||
RS 232 | |||||||
| Function | Process | ||||||
| Transmission speed | 9,600 ... 115,200 Bd | ||||||
| Data format | Adjustable | ||||||
| Start bit | 1 | ||||||
| Data bit | 7, 8 data bits | ||||||
| Stop bit | 1, 2 stop bits | ||||||
| Parity | Adjustable | ||||||
| Transmission protocol | Adjustable | ||||||
| Data encoding | ASCII | ||||||
| Type | RS 232 | ||||||
Connection | |||||||
| Number of connections | 1 Piece(s) | ||||||
Connection 1 | |||||||
| Type of connection | Connector | ||||||
| Function | Data interface, Configuration interface, Service interface | ||||||
| Thread size | M12 | ||||||
Basic data- Цена: Цену уточняйте
