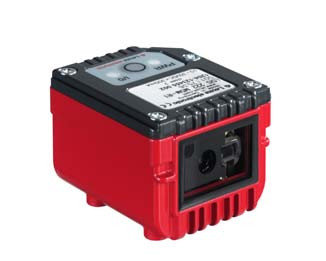

50117534 | LSIS 223 M5M-R1 - Stationary 2D-code reader
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | LSIS 22x | ||||||
Functions | |||||||
| Software functions | Reading of 2D codes, Reading of 1D codes | ||||||
Read data | |||||||
| Code types, readable | 2/5 Interleaved, Aztec, Codabar, Codablock, Code 128, Code 39, Code 93, Composite Codes, Data Matrix Code, EAN 128, EAN 8/13, EAN Addendum, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, GS1 Databar Omnidirectional, GS1 Databar Stacked, GS1 Databar Truncated, Maxicode, Micro PDF, Micro QR, PDF417, QR code, UPC | ||||||
Optical data | |||||||
| Reading distance | 50 ... 330 mm | ||||||
| Camera resolution, horizontal | 844 px | ||||||
| Camera resolution, vertical | 640 px | ||||||
| Modulus size | 0.127 ... 1 mm | ||||||
Electrical data | |||||||
| Protective circuit | Short circuit protected, Overvoltage protection, Polarity reversal protection | ||||||
Performance data | |||||||
| Supply voltage UB | 4.75 ... 5.25 V, DC | ||||||
| Current consumption, max. | 500 mA | ||||||
| Protective circuit | Short circuit protected, Overvoltage protection, Polarity reversal protection | ||||||
Inputs | |||||||
| Number of digital switching inputs | 1 Piece(s) | ||||||
Switching inputs | |||||||
| Voltage type | DC | ||||||
| Switching voltage | VIN | ||||||
| Number of digital switching inputs | 1 Piece(s) | ||||||
| Protective circuit | Short circuit protected, Overvoltage protection, Polarity reversal protection | ||||||
Outputs | |||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Switching outputs | |||||||
| Voltage type | DC | ||||||
| Switching voltage | VIN | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
| Protective circuit | Short circuit protected, Overvoltage protection, Polarity reversal protection | ||||||
Interface | |||||||
| Type | USB | ||||||
USB | |||||||
| Function | Process | ||||||
| Specification | USB 2.0 | ||||||
| Operating mode | COM port emulation, Keyboard emulation | ||||||
| Type | USB | ||||||
Connection | |||||||
| Number of connections | 1 Piece(s) | ||||||
Connection 1 | |||||||
| Type of connection | Connector | ||||||
| Function | Data interface, Configuration interface, Service interface | ||||||
| Thread size | M12 | ||||||
| Type | Male | ||||||
| Material | Metal | ||||||
| No. of pins | 8 -pin | ||||||
| Encoding | A-coded | ||||||
| Number of connections | 1 Piece(s) | ||||||
Mechanical data | |||||||
