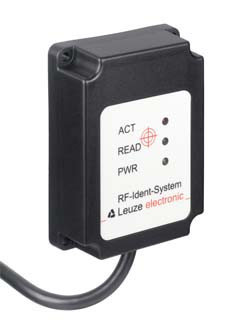

50040500 | RFI 32 L 120 - RFID read device
Описание
Информация для заказа
Basic data | |||||||
---|---|---|---|---|---|---|---|
Series | RFI | ||||||
Working frequency | 0.125 MHz | ||||||
Functions | |||||||
Functions | I/O, Configurable operating modes, LED indicator, Reading gate control | ||||||
Read data | |||||||
Transponder, readable | EM4102 | ||||||
Optical data | |||||||
Reading distance | 80 mm | ||||||
Electrical data | |||||||
Performance data | |||||||
Supply voltage UB | 12 ... 30 V, DC | ||||||
Power consumption, max. | 0.5 W | ||||||
Memory access | Read only | ||||||
Transmission speed | 4,000 Bd | ||||||
Inputs | |||||||
Number of digital switching inputs | 1 Piece(s) | ||||||
Outputs | |||||||
Number of digital switching outputs | 1 Piece(s) | ||||||
Interface | |||||||
Type | RS 232 | ||||||
RS 232 | |||||||
Function | Process | ||||||
Transmission speed | 9,600 Bd | ||||||
Data format | Fixed | ||||||
Start bit | 1 | ||||||
Data bit | 8 data bits | ||||||
Stop bit | 1 stop bit | ||||||
Parity | None | ||||||
Transmission protocol | |||||||
Type | RS 232 | ||||||
Connection | |||||||
Number of connections | 1 Piece(s) | ||||||
Connection 1 | |||||||
Type of connection | Cable with socket connectors (10+6) | ||||||
Function | Signal OUT, Data interface, Signal IN, Voltage supply | ||||||
Cable length | 1,000 mm | ||||||
Number of connections | 1 Piece(s) | ||||||
Mechanical data | |||||||
Design | Cubic | ||||||
Dimension (W x H x L) | 76 mm x 30 mm x 102 mm | ||||||
Housing material | Plastic, PC-ABS | ||||||
Net weight | 385 g | ||||||
Housing color | Black | ||||||
Type of fastening | Through-hole mounting | ||||||
Environmental data | |||||||
Ambient temperature, operation | -25 ... 70 °C | ||||||
Ambient temperature, storage | -40 ... 80 °C | ||||||
Relative humidity (non-condensing) | 5 ... 90 % | ||||||
Certifications | |||||||
Degree of protection | IP 65 | ||||||
Classification | |||||||
Customs tariff number | 84719000 | ||||||
eCl@ss 8.0 | <td align="center" class="val" colspan="</tr>
- Цена: Цену уточняйте
