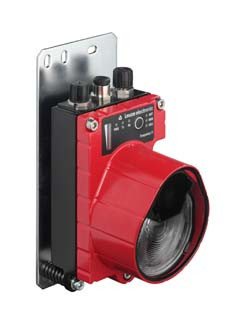

50106027 | DDLS 200/300.1-10-M12 - Optical data transmission
Описание
Информация для заказа
Basic data | |||||||
---|---|---|---|---|---|---|---|
Series | DDLS 200 | ||||||
Special design | |||||||
Special design | Operation of parallel light axes, Not influenced by reflective surfaces | ||||||
Optical data | |||||||
Working range | 200 ... 300,000 mm | ||||||
Light source | LED, Infrared | ||||||
Usable opening angle, transmitter | 1 ° | ||||||
Electrical data | |||||||
Performance data | |||||||
Supply voltage UB | 18 ... 30 V, DC | ||||||
Inputs | |||||||
Number of digital switching inputs | 1 Piece(s) | ||||||
Outputs | |||||||
Number of digital switching outputs | 1 Piece(s) | ||||||
Interface | |||||||
Type | PROFIBUS DP, RS 485 | ||||||
PROFIBUS DP | |||||||
Transmission speed | 0.0096 ... 1.5 Mbit/s | ||||||
Type | PROFIBUS DP, RS 485 | ||||||
Connection | |||||||
Number of connections | 3 Piece(s) | ||||||
Connection 1 | |||||||
Type of connection | Connector | ||||||
Designation on device | BUS IN | ||||||
Thread size | M12 | ||||||
Type | Male | ||||||
No. of pins | 5 -pin | ||||||
Encoding | B-coded | ||||||
Number of connections | 3 Piece(s) | ||||||
Connection 2 | |||||||
Type of connection | Connector | ||||||
Designation on device | Bus OUT | ||||||
Thread size | M12 | ||||||
Type | Female | ||||||
No. of pins | 5 -pin | ||||||
Encoding | B-coded | ||||||
Number of connections | 3 Piece(s) | ||||||
Connection 3 | |||||||
Type of connection | Connector | ||||||
Designation on device | PWR | ||||||
Thread size | M12 | ||||||
Type | Male | ||||||
No. of pins | 5 -pin | ||||||
Encoding | A-coded | ||||||
Number of connections | 3 Piece(s) | ||||||
Mechanical data | |||||||
Dimension (W x H x L) | 89.25 mm x 196.5 mm x 111.8 mm | ||||||
Housing material | Metal, Diecast aluminum | ||||||
Net weight | 1,245 g | ||||||
Operation and display | |||||||
Type of display | LED, Bar graph | ||||||
Environmental data | |||||||
Ambient temperature, operation | -5 ... 50 °C | ||||||
- Цена: Цену уточняйте
