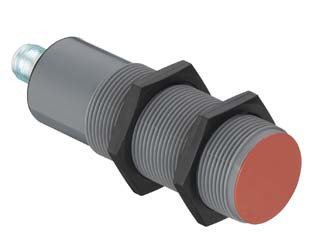

50136557 | LCS-2M30P-F20PNO-M12 - Capacitive sensor
Описание
Информация для заказа
Basic data | |||||||
---|---|---|---|---|---|---|---|
Series | LCS-2 | ||||||
Switching distance Sn | 2 ... 20 mm | ||||||
Assured switching distance | 16.2 mm | ||||||
Electrical data | |||||||
Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Performance data | |||||||
Supply voltage UB | 10 ... 30 V, DC | ||||||
Residual ripple | 0 ... 10 % | ||||||
Open-circuit current | 10 mA | ||||||
Rated operating current | 200 mA | ||||||
Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Outputs | |||||||
Number of digital switching outputs | 1 Piece(s) | ||||||
Switching outputs | |||||||
Type | Digital switching output | ||||||
Voltage type | DC | ||||||
Number of digital switching outputs | 1 Piece(s) | ||||||
Switching output 1 | |||||||
Switching element | Transistor, PNP | ||||||
Switching principle | NO (normally open) | ||||||
Number of digital switching outputs | 1 Piece(s) | ||||||
Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Timing | |||||||
Switching frequency | 100 Hz | ||||||
Connection | |||||||
Number of connections | 1 Piece(s) | ||||||
Connection 1 | |||||||
Type of connection | Connector | ||||||
Thread size | M12 | ||||||
Type | Male | ||||||
Material | Metal | ||||||
No. of pins | 4 -pin | ||||||
Encoding | A-coded | ||||||
Number of connections | 1 Piece(s) | ||||||
Mechanical data | |||||||
Design | Cylindrical | ||||||
Thread size | M30 x 1.5 mm | ||||||
Dimension (Ø x L) | 30 mm x 98 mm | ||||||
Type of installation | Embedded | ||||||
Housing material | Plastic, Polybutylene (PBT) | ||||||
Sensing face material | Plastic, Polybutylene (PBT) | ||||||
Cover material | Plastic, Polybutylene (PBT) | ||||||
Operation and display | |||||||
Type of display | LED | ||||||
Number of LEDs | 1 Piece(s) | ||||||
Switching distance, adjustable | Yes | ||||||
Environmental data | |||||||
Ambient temperature, operation | -25 ... 70 °C | ||||||
Certifications | |||||||
Degree of protection | IP 67 | ||||||
Protection class | III | ||||||
Standards applied | IEC 60947-5-2 | ||||||
<img class="noprint </strong> |
- Цена: Цену уточняйте
