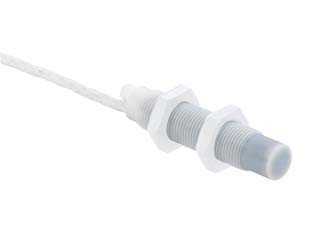

50135783 | LCS-1M18T-N15PNO-K020T - Capacitive sensor
Описание
Информация для заказа
Basic data | |||||||
---|---|---|---|---|---|---|---|
Series | LCS-1 | ||||||
Switching distance Sn | 2 ... 15 mm | ||||||
Assured switching distance | 15 mm | ||||||
Characteristic parameters | |||||||
MTTF | 300 years | ||||||
Electrical data | |||||||
Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Performance data | |||||||
Supply voltage UB | 10 ... 35 V, DC | ||||||
Residual ripple | 0 ... 10 %, From UB | ||||||
Open-circuit current | 15 mA | ||||||
Temperature drift, max. (in % of Sr) | 15 % | ||||||
Repeatability, max. (in % of Sr) | 2 % | ||||||
Rated operating current | 300 mA | ||||||
Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Outputs | |||||||
Number of digital switching outputs | 1 Piece(s) | ||||||
Switching outputs | |||||||
Type | Digital switching output | ||||||
Voltage type | DC | ||||||
Number of digital switching outputs | 1 Piece(s) | ||||||
Switching output 1 | |||||||
Switching element | Transistor, PNP | ||||||
Switching principle | NO (normally open) | ||||||
Number of digital switching outputs | 1 Piece(s) | ||||||
Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Timing | |||||||
Switching frequency | 100 Hz | ||||||
Connection | |||||||
Number of connections | 1 Piece(s) | ||||||
Connection 1 | |||||||
Type of connection | Cable | ||||||
Function | Voltage supply, Signal OUT | ||||||
Cable length | 2,000 mm | ||||||
Sheathing material | PTFE | ||||||
Number of conductors | 3 -wire | ||||||
Wire cross section | 0.2 mm² | ||||||
Number of connections | 1 Piece(s) | ||||||
Mechanical data | |||||||
Design | Cylindrical | ||||||
Thread size | M18 x 1 mm | ||||||
Dimension (Ø x L) | 18 mm x 73 mm | ||||||
Type of installation | Non-embedded | ||||||
Housing material | Plastic, Teflon (PTFE) | ||||||
Sensing face material | Plastic, Teflon (PTFE) | ||||||
Cover material | Plastic, Teflon (PTFE) | ||||||
Net weight | 110 g | ||||||
Operation and display | |||||||
Type of display | LED | ||||||
Number of LEDs | 1 Piece(s) | ||||||
Operational controls | Multiturn potentiometer (20 turns) | ||||||
Function of the operational control | Sensitivity adjustment | ||||||
Swi |
- Цена: Цену уточняйте
