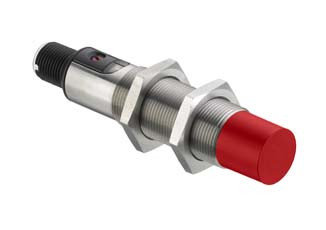

50135768 | LCS-1M18M-N15PNC-M12 - Capacitive sensor
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | LCS-1 | ||||||
| Switching distance Sn | 2 ... 15 mm | ||||||
| Assured switching distance | 15 mm | ||||||
Electrical data | |||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Performance data | |||||||
| Supply voltage UB | 10 ... 30 V, DC | ||||||
| Residual ripple | 0 ... 10 %, From UB | ||||||
| Open-circuit current | 15 mA | ||||||
| Temperature drift, max. (in % of Sr) | 20 % | ||||||
| Repeatability, max. (in % of Sr) | 2 % | ||||||
| Rated operating current | 100 mA | ||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Outputs | |||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Switching outputs | |||||||
| Type | Digital switching output | ||||||
| Voltage type | DC | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Switching output 1 | |||||||
| Switching element | Transistor, PNP | ||||||
| Switching principle | NC (normally closed) | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Timing | |||||||
| Switching frequency | 100 Hz | ||||||
Connection | |||||||
| Number of connections | 1 Piece(s) | ||||||
Connection 1 | |||||||
| Type of connection | Connector | ||||||
| Function | Voltage supply, Signal OUT | ||||||
| Thread size | M12 | ||||||
| Type | Male | ||||||
| Material | Plastic | ||||||
| No. of pins | 4 -pin | ||||||
| Encoding | A-coded | ||||||
| Number of connections | 1 Piece(s) | ||||||
Mechanical data | |||||||
| Design | Cylindrical | ||||||
| Thread size | M18 x 1 mm | ||||||
| Dimension (Ø x L) | 18 mm x 88.5 mm | ||||||
| Type of installation | Non-embedded | ||||||
| Housing material | Metal, V2A, Stainless steel | ||||||
| Sensing face material | Plastic, Polybutylene (PBT) | ||||||
| Cover material | Plastic, Polybutylene (PBT)/polyamide (PA 12) | ||||||
| Net weight | 47 g | ||||||
Operation and display | |||||||
| Type of display | LED | ||||||
| Number of LEDs | 2 Piece(s) | ||||||
| Operational controls | Multiturn potentiometer (12 turns) | ||||||
| Function of the operational control | Sensitivity adjustment | ||||||
| Switching distance, adjustable | Yes | ||||||
<img class="noprint nodialog</strong> | |||||||
Basic data- Цена: Цену уточняйте
