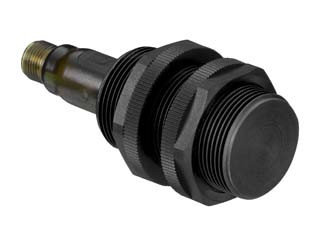

50135739 | LCS-1M30P-F10NNP-M12-LT - Capacitive sensor
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | LCS-1 | ||||||
| Switching distance Sn (embedded installation) | 1 ... 10 mm | ||||||
| Switching distance Sn (non-embedded installation) | 1 ... 15 mm | ||||||
| Assured switching distance (embedded installation) | 7.2 mm | ||||||
| Assured switching distance (non-embedded installation) | 10.8 mm | ||||||
Electrical data | |||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Performance data | |||||||
| Supply voltage UB | 10 ... 30 V, DC | ||||||
| Residual ripple | 0 ... 10 %, From UB | ||||||
| Open-circuit current | 15 mA | ||||||
| Temperature drift, max. (in % of Sr) | 20 % | ||||||
| Repeatability, max. (in % of Sr) | 2 % | ||||||
| Rated operating current | 200 mA | ||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Outputs | |||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Switching outputs | |||||||
| Type | Digital switching output | ||||||
| Voltage type | DC | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Switching output 1 | |||||||
| Switching element | Transistor, NPN | ||||||
| Switching principle | Normally closed contact (NC)/normally open contact (NO), programmable | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Timing | |||||||
| Switching frequency | 10 Hz | ||||||
Interface | |||||||
| Type | IO-Link | ||||||
IO-Link | |||||||
| COM mode | COM2 | ||||||
| Frame type | 2.2 | ||||||
| Specification | 1.1 | ||||||
| Type | IO-Link | ||||||
Connection | |||||||
| Number of connections | 1 Piece(s) | ||||||
Connection 1 | |||||||
| Type of connection | Connector | ||||||
| Function | Voltage supply, Signal OUT | ||||||
| Thread size | M12 | ||||||
| Type | Male | ||||||
| Material | Plastic | ||||||
| No. of pins | 5 -pin | ||||||
| Encoding | A-coded | ||||||
| Number of connections | 1 Piece(s) | ||||||
Mechanical data | |||||||
| Design | Cylindrical | ||||||
| Thread size | M30 x 1.5 mm | ||||||
| Dimension (Ø x L) | 30 mm x 87.3 mm | ||||||
| Type of installation | Embedded and non-embedded | ||||||
| Housing material | Plastic, Polyamide (PA 12) | ||||||
| Sensing | |||||||
Basic data- Цена: Цену уточняйте
