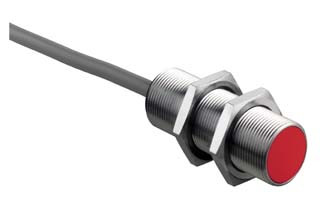

50128152 | IS 218MM/1NO.3-5E0 - Inductive switch
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | 218 | ||||||
| Typ. operating range limit Sn | 5 mm | ||||||
| Operating range Sa | 0 ... 4 mm | ||||||
Measurement data | |||||||
| Repeatability | 0.5 mm | ||||||
Electrical data | |||||||
| Protective circuit | Short circuit protected, Inductive protection, Polarity reversal protection | ||||||
Performance data | |||||||
| Supply voltage UB | 10 ... 320 V, DC | ||||||
| Supply voltage UB | 10 ... 320 V, AC/DC | ||||||
| Residual ripple | 0 ... 20 %, From UB | ||||||
| Open-circuit current | 0 ... 1 mA | ||||||
| Temperature drift, max. (in % of Sr) | 10 %, Over the entire operating temperature range | ||||||
| Switching hysteresis | 20 % | ||||||
| Protective circuit | Short circuit protected, Inductive protection, Polarity reversal protection | ||||||
Outputs | |||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Switching outputs | |||||||
| Voltage type | AC/DC | ||||||
| Switching current, max. | 200 mA | ||||||
| Switching voltage | low: ≤6V | ||||||
| Voltage drop | 6 V | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Switching output 1 | |||||||
| Switching element | Relay, NO | ||||||
| Switching principle | NO (normally open) | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
| Protective circuit | Short circuit protected, Inductive protection, Polarity reversal protection | ||||||
Timing | |||||||
| Switching frequency | 1,500 Hz | ||||||
| Oscillator frequency | 175,000 Hz | ||||||
| Readiness delay | 70 ms | ||||||
Connection | |||||||
| Number of connections | 1 Piece(s) | ||||||
Connection 1 | |||||||
| Type of connection | Cable | ||||||
| Function | Voltage supply | ||||||
| Cable length | 2,000 mm | ||||||
| Sheathing material | PVC | ||||||
| Cable color | Black | ||||||
| Number of conductors | 2 -wire | ||||||
| Wire cross section | 0.34 mm² | ||||||
| Number of connections | 1 Piece(s) | ||||||
Mechanical data | |||||||
| Design | Cylindrical | ||||||
| Thread size | M18 x 1 mm | ||||||
| Dimension (Ø x L) | 18 mm x 50 mm | ||||||
| Type of installation | Embedded | ||||||
| Housing material | Metal, Chromed brass | ||||||
| Sensing face material | Plastic, Polybutylene (PBT) | ||||||
| Net weight | 116 g | ||||||
| Housing color | Silver, Red, RAL 3000 | ||||||
| Type of fastening | |||||||
Basic data- Цена: Цену уточняйте
