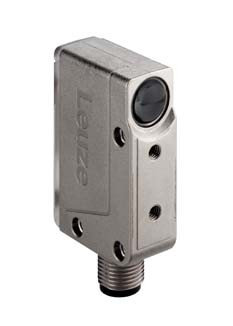

50121228 | PRK18B.TT3/2N-M12 - Polarized retro-reflective photoelectric sensor
Описание
Характеристики
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | 18B | ||||||
| Operating principle | Reflection principle | ||||||
| Application | Detection of highly transparent bottles, Detection of highly transparent films and glass panes | ||||||
Special design | |||||||
| Special design | Autocollimation, Tracking function | ||||||
Optical data | |||||||
| Operating range | 0 ... 3 m | ||||||
| Operating range limit | 0 ... 3.6 m | ||||||
| Light source | LED, Red | ||||||
Electrical data | |||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Performance data | |||||||
| Supply voltage UB | 10 ... 30 V, DC | ||||||
| Residual ripple | 0 ... 15 %, From UB | ||||||
| Open-circuit current | 0 ... 18 mA | ||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Outputs | |||||||
| Number of digital switching outputs | 2 Piece(s) | ||||||
Switching output 1 | |||||||
| Switching element | Transistor, NPN | ||||||
| Switching principle | Light switching | ||||||
| Number of digital switching outputs | 2 Piece(s) | ||||||
Switching output 2 | |||||||
| Switching element | Transistor, NPN | ||||||
| Switching principle | Dark switching | ||||||
| Number of digital switching outputs | 2 Piece(s) | ||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Timing | |||||||
| Switching frequency | 1,500 Hz | ||||||
| Response time | 0.333 ms | ||||||
Connection | |||||||
Connection 1 | |||||||
| Type of connection | Connector | ||||||
| Function | Voltage supply, Signal OUT | ||||||
| Thread size | M12 | ||||||
| Material | Metal | ||||||
| No. of pins | 4 -pin | ||||||
Mechanical data | |||||||
| Dimension (W x H x L) | 15 mm x 47 mm x 32.5 mm | ||||||
| Housing material | Metal, Diecast zinc | ||||||
| Lens cover material | Glass | ||||||
| Net weight | 60 g | ||||||
| Type of fastening | Through-hole mounting, Front mounting with thread, Via optional mounting device | ||||||
| Compatibility of materials | ECOLAB | ||||||
Operation and display | |||||||
| Operational controls | Teach button | ||||||
Environmental data | |||||||
| Ambient temperature, operation | -40 ... 60 °C | ||||||
Certifications | |||||||
| Degree of protection | IP 67, IP 69K | ||||||
Basic data| Основные | |
|---|---|
| Цвет | Красный |
- Цена: Цену уточняйте
