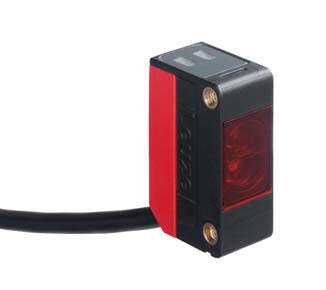

50117693 | LS5/9D-200-M12 - Throughbeam photoelectric sensor transmitter
Описание
Характеристики
Информация для заказа
Basic data | |||||||
---|---|---|---|---|---|---|---|
Series | 5 | ||||||
Operating principle | Throughbeam principle | ||||||
Device type | Transmitter | ||||||
Special design | |||||||
Special design | Deactivation input | ||||||
Optical data | |||||||
Operating range | 0 ... 10 m | ||||||
Operating range limit | 0 ... 15 m | ||||||
Light source | LED, Red | ||||||
Electrical data | |||||||
Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Performance data | |||||||
Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple | ||||||
Residual ripple | 0 ... 15 %, From UB | ||||||
Open-circuit current | 0 ... 15 mA | ||||||
Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Inputs | |||||||
Number of deactivation inputs | 2 Piece(s) | ||||||
Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Connection | |||||||
Connection 1 | |||||||
Type of connection | Cable with connector | ||||||
Function | Voltage supply, Signal IN | ||||||
Cable length | 200 mm | ||||||
Thread size | M12 | ||||||
Material | Plastic | ||||||
No. of pins | 4 -pin | ||||||
Mechanical data | |||||||
Dimension (W x H x L) | 14 mm x 32.5 mm x 20.2 mm | ||||||
Housing material | Plastic, ABS | ||||||
Lens cover material | Plastic | ||||||
Net weight | 40 g | ||||||
Environmental data | |||||||
Ambient temperature, operation | -40 ... 60 °C | ||||||
Certifications | |||||||
Degree of protection | IP 67 | ||||||
Protection class | III | ||||||
Certifications | c UL US | ||||||
Standards applied | IEC 60947-5-2 | ||||||
Classification | |||||||
Customs tariff number | 85365019 | ||||||
eCl@ss 8.0 | 27270901 | ||||||
eCl@ss 9.0 | 27270901 | ||||||
ETIM 5.0 | EC002716 | ||||||
ETIM 6.0 | EC002716 |
