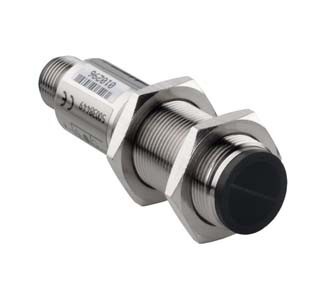

50038449 | RT 618/4-200-S12 - Energetic diffuse sensor
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | 618 | ||||||
| Operating principle | Diffuse reflection principle | ||||||
Optical data | |||||||
| Operating range, white 90% | 0 ... 0.2 m | ||||||
| Operating range, gray 18% | 0.001 ... 0.097 m | ||||||
| Operating range, black 6% | 0.003 ... 0.065 m | ||||||
| Operating range limit, white 90% | 0 ... 0.3 m | ||||||
| Operating range limit, gray 18% | 0.001 ... 0.146 m | ||||||
| Operating range limit, black 6% | 0.003 ... 0.1 m | ||||||
| Light source | LED, Infrared | ||||||
Electrical data | |||||||
| Protective circuit | Overvoltage protection, Short circuit protected | ||||||
Performance data | |||||||
| Supply voltage UB | 10 ... 30 V, DC | ||||||
| Residual ripple | 0 ... 10 %, From UB | ||||||
| Open-circuit current | 0 ... 30 mA | ||||||
| Protective circuit | Overvoltage protection, Short circuit protected | ||||||
Outputs | |||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Switching output 1 | |||||||
| Switching element | Transistor, PNP | ||||||
| Switching principle | Light/dark reversible | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
| Protective circuit | Overvoltage protection, Short circuit protected | ||||||
Timing | |||||||
| Switching frequency | 500 Hz | ||||||
| Response time | 1 ms | ||||||
Connection | |||||||
Connection 1 | |||||||
| Type of connection | Connector | ||||||
| Function | Voltage supply, Signal IN, Signal OUT | ||||||
| Thread size | M12 | ||||||
| Material | Metal | ||||||
| No. of pins | 4 -pin | ||||||
Mechanical data | |||||||
| Thread size | M18 x 1 mm | ||||||
| Dimension (Ø x L) | 18 mm x 60 mm | ||||||
| Housing material | Metal, Nickel-plated brass | ||||||
| Lens cover material | Plastic | ||||||
| Net weight | 40 g | ||||||
Operation and display | |||||||
| Operational controls | 270° potentiometer | ||||||
Environmental data | |||||||
| Ambient temperature, operation | -25 ... 55 °C | ||||||
Certifications | |||||||
| Degree of protection | IP 67 | ||||||
| Protection class | II | ||||||
| Standards applied | IEC 60947-5-2 | ||||||
Classification | |||||||
| Customs tariff number | 85365019 | ||||||
| eCl@ss 8.0 | 27270903 | ||||||
| eCl@ss 9.0 | <td align="center" class="v</tr>|||||||
Basic data- Цена: Цену уточняйте
