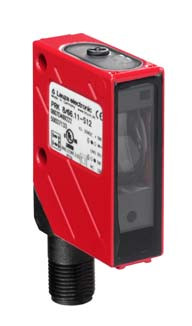

50037135 | PRK 8/66.42-S12 - Polarized retro-reflective photoelectric sensor
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | 8 | ||||||
| Operating principle | Reflection principle | ||||||
| Application | Detection of highly transparent bottles, Detection of highly transparent films and glass panes | ||||||
Special design | |||||||
| Special design | Autocollimation, Teach input, Tracking function | ||||||
Optical data | |||||||
| Operating range | 0 ... 2 m | ||||||
| Operating range limit | 0 ... 2.4 m | ||||||
| Light source | LED, Red | ||||||
Electrical data | |||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Performance data | |||||||
| Supply voltage UB | 10 ... 30 V, DC | ||||||
| Residual ripple | 0 ... 15 %, From UB | ||||||
| Open-circuit current | 0 ... 35 mA | ||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Inputs | |||||||
| Number of teach inputs | 1 Piece(s) | ||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Outputs | |||||||
| Number of digital switching outputs | 2 Piece(s) | ||||||
Switching output 1 | |||||||
| Switching element | Transistor, Push-pull | ||||||
| Switching principle | Light switching (PNP)/dark switching (NPN) | ||||||
| Number of digital switching outputs | 2 Piece(s) | ||||||
Switching output 2 | |||||||
| Switching element | Transistor, Push-pull | ||||||
| Switching principle | Dark switching (PNP)/light switching (NPN) | ||||||
| Number of digital switching outputs | 2 Piece(s) | ||||||
| Protective circuit | Polarity reversal protection, Short circuit protected | ||||||
Timing | |||||||
| Switching frequency | 1,000 Hz | ||||||
| Response time | 0.5 ms | ||||||
Connection | |||||||
Connection 1 | |||||||
| Type of connection | Connector, Turning, 90° | ||||||
| Function | Voltage supply, Signal IN, Signal OUT | ||||||
| Thread size | M12 | ||||||
| Material | Metal | ||||||
| No. of pins | 5 -pin | ||||||
Mechanical data | |||||||
| Dimension (W x H x L) | 15 mm x 48 mm x 38 mm | ||||||
| Housing material | Metal, Zinc | ||||||
| Lens cover material | Glass | ||||||
| Net weight | 70 g | ||||||
| Type of fastening | Through-hole mounting, Dovetail grooves, Mounting thread, Via optional mounting device | ||||||
| Compatibility of materials | ECOLAB | ||||||
Operation and display | |||||||
| Operational controls | Multiturn potentiometer | ||||||
<img class="noprint </strong> | |||||||
Basic data- Цена: Цену уточняйте
