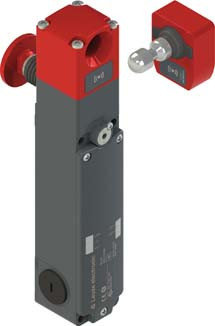

50132052 | L300-M31C3-SLM24-PB-SCA - Safety locking device
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | L300 | ||||||
Functions | |||||||
| Functions | Locking device with guard interlocking in acc. with EN ISO 14119 (type 4) | ||||||
| Activation mode of safety outputs | Safety outputs active if safety dИли отправьте нам запрос наtd> | ||||||
| Operating principle | Quiescent current principle – Actuator locked if electromagnet is deactivated | ||||||
Characteristic parameters | |||||||
| SIL | 3, IEC 61508 | ||||||
| SILCL | 3, IEC/EN 62061 | ||||||
| Performance Level (PL) | Up to and including e, EN ISO 13849-1 | ||||||
| MTTFd | 2,725 years, EN ISO 13849-1 | ||||||
| PFHD | 1.17E-9 per hour | ||||||
| Mission time | 20 years, EN ISO 13849-1 | ||||||
| Category | 4, EN ISO 13849-1 | ||||||
| DC | High | ||||||
| Encoding level | Low, EN ISO 14119 | ||||||
Electrical data | |||||||
| Type of wiring | Single connection, Series connection | ||||||
| External safeguarding for supply circuit | 2A type Gg (or equivalent) | ||||||
Performance data | |||||||
| Supply voltage UB | 24 V, DC, -10 ... 10 % | ||||||
| Current consumption, max. | 1,200 mA | ||||||
| External safeguarding for supply circuit | 2A type Gg (or equivalent) | ||||||
Inputs | |||||||
| Number of safety-related switching inputs | 2 Piece(s) | ||||||
| Number of digital switching inputs | 2 Piece(s) | ||||||
Switching inputs | |||||||
| Type | Digital switching input | ||||||
| Switching voltage, typ. | 24 V | ||||||
| Voltage type | DC | ||||||
| Current consumption, typ. | 5 mA | ||||||
| Number of digital switching inputs | 2 Piece(s) | ||||||
Digital switching input 1 | |||||||
| Function | IE1 activation input: electromagnet | ||||||
| Number of digital switching inputs | 2 Piece(s) | ||||||
Digital switching input 2 | |||||||
| Function | IE2 activation input: electromagnet | ||||||
| Number of digital switching inputs | 2 Piece(s) | ||||||
Safety-related switching inputs | |||||||
| Type | Safety switching input | ||||||
| Voltage type | DC | ||||||
| Switching voltage, typ. | 24 V | ||||||
| Current consumption, typ. | 5 mA | ||||||
| Number of digital switching inputs | 2 Piece(s) | ||||||
| External safeguarding for supply circuit | 2A type Gg (or equivalent) | ||||||
Outputs | |||||||
| Number of safety-related switching outputs (OSSDs) | 2 Piece(s) | ||||||
| Number of digital switching outputs | 2 Piece(s) | ||||||
Safety-related switching outputs | |||||||
| Type | Safety-related switching output OSSD | ||||||
| Voltage type | DC | ||||||
Basic data- Цена: Цену уточняйте
