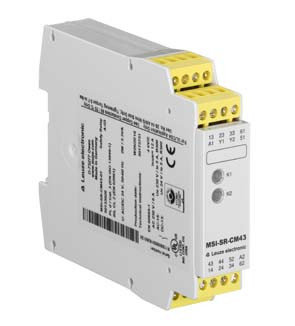

50133026 | MSI-SR-CM43-01 - Safety relay
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | MSI-SR-CM43 | ||||||
| Application | Extension unit for safety relays | ||||||
Functions | |||||||
| Functions | Monitoring of proximity switches | ||||||
| Restart | Automatic | ||||||
Characteristic parameters | |||||||
| SIL | 2, IEC 61508 | ||||||
| SILCL | 2, IEC/EN 62061 | ||||||
| Performance Level (PL) | d, EN ISO 13849-1 | ||||||
| MTTFd | 55 years, EN ISO 13849-1 | ||||||
| PFHD | 8,1E-10 per hour | ||||||
| Mission time | 20 years, EN ISO 13849-1 | ||||||
| Category | 3, EN ISO 13849 | ||||||
| B10d at DC13 (inductive load) | 300,000 number of cycles, (5 A, 230 V), 700,000 (1 A, 230 V) | ||||||
| B10d at AC15 (inductive load) | 200,000 number of cycles, (5 A, 230 V), 380,000 (1 A, 230 V) | ||||||
Electrical data | |||||||
Supply circuit | |||||||
| Nominal voltage UN | 24 V DC | ||||||
| Nominal frequency | 50 ... 60 Hz | ||||||
| Operating voltage | 0.85 ... 1.1 x UN | ||||||
| Rated power AC | 3.3 V·A | ||||||
| Rated power DC | 1.5 W | ||||||
Output circuit | |||||||
| Number of outputs, safety-oriented, undelayed, contact-based | 4 Piece(s) | ||||||
| Number of outputs, signaling function, undelayed, contact-based | 3 Piece(s) | ||||||
| Contact material | Ag alloy, gold-plated | ||||||
| Usage category AC-15 (NO contact) | Ue 230V, Ie 5A | ||||||
| Usage category DC-13 (NO contact) | Ue 24V, Ie 5A | ||||||
| Short circuit protection (NO contact) | gG class safety fuse 6A, melting integral | ||||||
| Max. total current I² of all current paths | 25 A² | ||||||
| Mechanical life time | 100,000,000 switching cycles | ||||||
Control circuit | |||||||
| Max. cable resistance, per channel | ≤ (5 + (1.176 x UB / UN - 1) x 100) Ω | ||||||
Connection | |||||||
| Number of connections | 1 Piece(s) | ||||||
Connection 1 | |||||||
| Type of connection | Terminal | ||||||
| Function | Voltage supply, Signal IN, Signal OUT | ||||||
| Type of terminal | Screw terminal | ||||||
| No. of pins | 16 -pin | ||||||
| Number of connections | 1 Piece(s) | ||||||
Cable properties | |||||||
| Connection cross sections | 1 x 0.2 to 2.5 mИли отправьте нам запрос на², wire, 1 x 0.25 to 2.5 mm², wire with wire-end sleeve, 2 x 0.2 to 1.0 mИли отправьте нам запрос на², wire, 2 x 0.25 to 1.0 mm², wire with wire-end sleeve | ||||||
| Number of connections | 1 Piece(s) | ||||||
Mechanical data | |||||||
| Dimension (W x H x L) | 22.5 mm x 96.5 mm x 114 mm | ||||||
| Net weight | 200 g | ||||||
| Housing color | Gray | ||||||
| Type of fastening | Snap-on mounting | ||||||
<img class="noprint nodialog" src="https://www.ifm.com/img/collaps</strong> | |||||||
Basic data- Цена: Цену уточняйте
