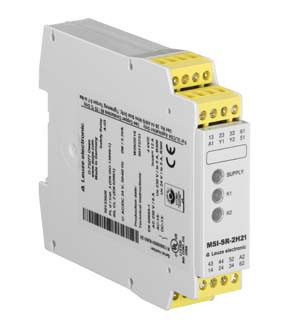

50133017 | MSI-SR-2H21-03 - Safety relay
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | MSI-SR-2H21 | ||||||
| Application | Evaluation unit for two-hand control devices | ||||||
Characteristic parameters | |||||||
| SIL | 3, IEC 61508 | ||||||
| SILCL | 3, IEC/EN 62061 | ||||||
| Performance Level (PL) | e, EN ISO 13849-1 | ||||||
| PFHD | 3E-08 per hour | ||||||
| Mission time | 20 years, EN ISO 13849-1 | ||||||
| Category | 4, EN ISO 13849 | ||||||
Electrical data | |||||||
Supply circuit | |||||||
| Nominal voltage UN | 24 V AC/DC | ||||||
| Nominal frequency | 50 ... 60 Hz | ||||||
| Rated control supply voltage US at AC 60 Hz | 20.4 V | ||||||
| Rated control supply voltage US at AC 50 Hz | 26.4 V | ||||||
| Max. rated control supply voltage at AC 50 Hz | 26.4 V | ||||||
| Min. rated control supply voltage US at AC 50 Hz | 20.4 V | ||||||
| Min. rated control supply voltage US at DC | 20.4 V | ||||||
| Max. rated control supply voltage at DC | 26.4 V | ||||||
| Min. rated control supply voltage at DC | 20.4 V | ||||||
| Rated power DC | 2.4 W | ||||||
| Galvanic isolation between supply and control circuit | Yes (when UN ≥ AC 115-230 V, AC 230 V) | ||||||
Output circuit | |||||||
| Number of outputs, safety-oriented, undelayed, contact-based | 2 Piece(s) | ||||||
| Number of outputs, signaling function, undelayed, contact-based | 1 Piece(s) | ||||||
| Release current paths | NO | ||||||
| Signaling current paths | NC | ||||||
| Contact material | Ag alloy, gold-plated | ||||||
| Usage category AC-15 (NO contact) | Ue 230V, Ie 3A | ||||||
| Usage category DC-13 (NO contact) | Ue 24V, Ie 2,5A | ||||||
| Short circuit protection (NO contact) | gG class safety fuse 6A, melting integral | ||||||
| Nominal switching voltage, release current paths AC | 230 V | ||||||
| Max. thermal continuous current Ith, release current paths | 6 A | ||||||
| Max. thermal continuous current Ith, signaling current paths | 2 A | ||||||
| Max. total current I² of all current paths | 9 A² | ||||||
| Mechanical life time | 100,000,000 switching cycles | ||||||
Control circuit | |||||||
| Executing the switching function of the inputs | Changeover | ||||||
| Nominal output voltage DC | 24 V | ||||||
| Input current at the control inputs (safety circuit/reset circuit) | 60 mA | ||||||
| Max. peak current at the control inputs (safety circuit/reset circuit) | 1,000 mA | ||||||
| Max. cable resistance, per channel | ≤ (5 + (1.333 x UB / UN - 1) x 200) Ω | ||||||
| Response time (automatic start tA2) | 40 ms | ||||||
| Response time (manual start tA1) | 40 ms | ||||||
| Release time tR | 50 ms | ||||||
| Sychronous time monitoring tS | 500 ms | ||||||
| Recovery time tW | 250 ms | ||||||
Connection | |||||||
| Number of connections | 1 Piece(s) | ||||||
Connection 1 | |||||||
| T | |||||||
Basic data- Цена: Цену уточняйте
