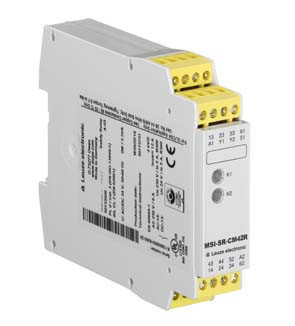

50133015 | MSI-SR-CM42R-03 - Safety relay
Описание
Информация для заказа
Basic data | |||||||
---|---|---|---|---|---|---|---|
Series | MSI-SR-CM42 | ||||||
Application | Extension unit for base devices in safety applications | ||||||
Functions | |||||||
Restart | Automatic | ||||||
Characteristic parameters | |||||||
SIL | 3, IEC 61508 | ||||||
SILCL | 3, IEC/EN 62061 | ||||||
Performance Level (PL) | e, EN ISO 13849-1 | ||||||
PFHD | 1,5E-09 per hour | ||||||
Mission time | 20 years, EN ISO 13849-1 | ||||||
Category | 4, EN ISO 13849 | ||||||
Electrical data | |||||||
Supply circuit | |||||||
Nominal voltage UN | 24 V DC | ||||||
Rated power DC | 1.4 W | ||||||
Output circuit | |||||||
Release current paths | 4 | ||||||
Signaling current paths | 2 | ||||||
Contact material | Ag alloy, gold-plated | ||||||
Usage category AC-15 (NO contact) | Ue 230V, Ie 3A | ||||||
Usage category DC-13 (NO contact) | Ue 24V, Ie 1A | ||||||
Short circuit protection (NO contact) | gG class safety fuse 6A, melting integral | ||||||
Max. thermal continuous current Ith, release current paths | 6 A | ||||||
Max. thermal continuous current Ith, signaling current paths | 1 A | ||||||
Max. total current I² of all current paths | 144 A² | ||||||
Mechanical life time | 100,000,000 switching cycles | ||||||
Control circuit | |||||||
Max. peak current at the control inputs (safety circuit/reset circuit) | 110 mA | ||||||
Max. cable resistance, per channel | ≤ (5 + (1.333 x UB / UN - 1) x 200) Ω | ||||||
Release time tR | 15 ms | ||||||
Recovery time tW | 30 ms | ||||||
Connection | |||||||
Number of connections | 1 Piece(s) | ||||||
Connection 1 | |||||||
Type of connection | Terminal | ||||||
Function | Voltage supply, Signal IN, Signal OUT | ||||||
Type of terminal | Spring-cage terminal | ||||||
No. of pins | 16 -pin | ||||||
Number of connections | 1 Piece(s) | ||||||
Cable properties | |||||||
Connection cross sections | 2 x 0.2 to 1.5 mИли отправьте нам запрос на², wire, 2 x 0.25 to 1.5 mm², wire with wire-end sleeve | ||||||
Number of connections | 1 Piece(s) | ||||||
Mechanical data | |||||||
Dimension (W x H x L) | 22.5 mm x 106.5 mm x 114 mm | ||||||
Net weight | 180 g | ||||||
Housing color | Gray | ||||||
Type of fastening | Snap-on mounting | ||||||
Certifications | |||||||
Certifications | TÜV Rheinland, c UL US | ||||||
Classification | |||||||
Customs tariff number | <td align="center" class="val</tr>
