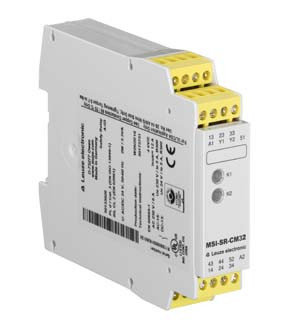

50133012 | MSI-SR-CM32-01 - Safety relay
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | MSI-SR-CM32 | ||||||
| Application | Extension unit for base devices in safety applications | ||||||
Functions | |||||||
| Functions | Monitoring of proximity switches | ||||||
| Restart | Automatic | ||||||
Characteristic parameters | |||||||
| SIL | 3, IEC 61508 | ||||||
| SILCL | 3, IEC/EN 62061 | ||||||
| Performance Level (PL) | e, EN ISO 13849-1 | ||||||
| MTTFd | 74 years, EN ISO 13849-1 | ||||||
| PFHD | 3,5E-10 per hour | ||||||
| Mission time | 20 years, EN ISO 13849-1 | ||||||
| Category | 4, EN ISO 13849 | ||||||
| B10d at DC13 (inductive load) | 300,000 number of cycles, (5 A, 230 V), 700,000 (1 A, 230 V) | ||||||
| B10d at AC15 (inductive load) | 200,000 number of cycles, (5 A, 230 V), 380,000 (1 A, 230 V) | ||||||
Electrical data | |||||||
Supply circuit | |||||||
| Nominal voltage UN | 24 V DC | ||||||
| Nominal frequency | 50 ... 60 Hz | ||||||
| Operating voltage | 0.85 ... 1.1 x UN | ||||||
| Rated power DC | 1.2 W | ||||||
| Galvanic isolation between supply and control circuit | No | ||||||
Output circuit | |||||||
| Number of outputs, safety-oriented, undelayed, contact-based | 3 Piece(s) | ||||||
| Number of outputs, signaling function, undelayed, contact-based | 2 Piece(s) | ||||||
| Release current paths | NO | ||||||
| Signaling current paths | NC | ||||||
| Contact material | Ag alloy, gold-plated | ||||||
| Usage category AC-15 (NO contact) | Ue 230V, Ie 3A | ||||||
| Usage category DC-13 (NO contact) | Ue 24V, Ie 2,5A | ||||||
| Short circuit protection (NO contact) | gG class safety fuse 6A, melting integral | ||||||
| Nominal switching voltage, release current paths AC | 230 V | ||||||
| Nominal switching voltage, signaling current paths AC | 230 V | ||||||
| Max. thermal continuous current Ith, release current paths | 6 A | ||||||
| Max. thermal continuous current Ith, signaling current paths | 2 A | ||||||
| Max. total current I² of all current paths | 9 A² | ||||||
| Mechanical life time | 100,000,000 switching cycles | ||||||
Control circuit | |||||||
| Input current at the control inputs (safety circuit/reset circuit) | 50 mA | ||||||
| Max. peak current at the control inputs (safety circuit/reset circuit) | 500 mA | ||||||
| Max. cable resistance, per channel | ≤ (5 + (1.6 x UB / UN - 1) x 100) Ω | ||||||
| Response time (manual start tA1) | 40 ms | ||||||
| Test pulse time permitted tTP | 1 ms | ||||||
| Release time tR | 20 ms | ||||||
| Recovery time tW | 40 ms | ||||||
Connection | |||||||
| Number of connections | 1 Piece(s) | ||||||
Connection 1 | |||||||
| Type of connection | Terminal | ||||||
| Function | Voltage supply, Signal IN, Signal OUT | ||||||
Basic data- Цена: Цену уточняйте
