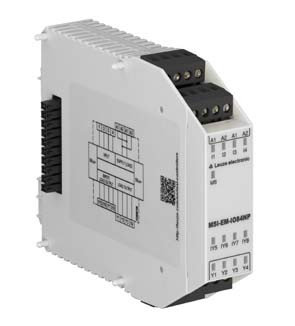

50132998 | MSI-EM-IO84NP-03 - Non-safe I/O module
Описание
Информация для заказа
Basic data | |||||||
---|---|---|---|---|---|---|---|
Series | MSI-EM | ||||||
Application | Processing of non-safe signals | ||||||
Number of safe I/Os | 4 IN, 4 OUT, 4 programmable I/O | ||||||
Functions | |||||||
Functions | Non-safe extension module for the MSI 400 configurable safety control, Extension with 4 non-safe inputs, 4 non-safe outputs and 4 non-safe freely programmable I/Os (OSSDs) | ||||||
Characteristic parameters | |||||||
Mission time | 20 years, EN ISO 13849-1 | ||||||
Electrical data | |||||||
Performance data | |||||||
Supply voltage UB | 24 V, DC, -30 ... 25 % | ||||||
Power consumption, max. | 0.5 W | ||||||
Supply circuit | |||||||
Nominal voltage UN | 24 V | ||||||
Output circuit | |||||||
Number of outputs | 4 Piece(s) | ||||||
Number of configurable inputs/outputs | 4 Piece(s) | ||||||
Type of digital output | Transistor | ||||||
Short circuit protection, outputs | Yes | ||||||
Min. voltage permitted at the output | 16.2 V | ||||||
Max. voltage permitted at the output | 30 V | ||||||
Total output current, max. | 4 A | ||||||
Nominal output current per output, max. | 0.5 A | ||||||
Control circuit | |||||||
Number of inputs | 4 Piece(s) | ||||||
Voltage permitted at the input | 30 V | ||||||
Input current at signal 1 | 3 mA | ||||||
Interface | |||||||
Type | Internal bus (SBUS+) | ||||||
Connection | |||||||
Number of connections | 1 Piece(s) | ||||||
Connection 1 | |||||||
Type of connection | Terminal | ||||||
Function | Signal IN, Signal OUT, Voltage supply | ||||||
Type of terminal | Spring-cage terminal | ||||||
No. of pins | 16 -pin | ||||||
Number of connections | 1 Piece(s) | ||||||
Cable properties | |||||||
Connection cross sections | 2 x 0.2 to 1.5 mИли отправьте нам запрос на², wire, 2 x 0.25 to 1.5 mm², wire with wire-end sleeve (pressed in trapezium shape) | ||||||
Number of connections | 1 Piece(s) | ||||||
Mechanical data | |||||||
Dimension (W x H x L) | 22.5 mm x 107 mm x 120.8 mm | ||||||
Net weight | 180 g | ||||||
Housing color | Gray | ||||||
Type of fastening | Snap-on mounting | ||||||
Environmental data | |||||||
Ambient temperature, operation | -25 ... 65 °C | ||||||
Ambient temperature, storage | -25 ... 70 °C | ||||||
Relative humidity (non-condensing) | 10 ... 95 % | ||||||
Certifications | |||||||
Degree of protection |
- Цена: Цену уточняйте
