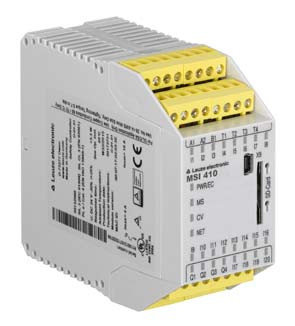

50132984 | MSI 410-01 - Safety control
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | MSI 410 | ||||||
| Application | Monitoring of safety functions | ||||||
| Number of safe I/Os | 20 IN, 4 OUT | ||||||
Functions | |||||||
| Functions | Configurable safety control, Additional I/O extensions available (optional), Configuration via MSI.designer software, Removable program memory (must be ordered separately, part no. 50132996), Transfer of diagnostic data via external fieldbus modules, e.g. MSI-FB-PROFIBUS (optional), USBmini interface | ||||||
Characteristic parameters | |||||||
| SIL | 3, IEC 61508 | ||||||
| SILCL | 3, IEC/EN 62061 | ||||||
| Performance Level (PL) | Up to and including e, EN ISO 13849-1 | ||||||
| PFHD | 4,3E-09 per hour | ||||||
| Mission time | 20 years, EN ISO 13849-1 | ||||||
| Category | 4, EN ISO 13849 | ||||||
Electrical data | |||||||
Performance data | |||||||
| Supply voltage UB | 24 V, DC, -30 ... 25 % | ||||||
| Power consumption, max. | 3.3 W | ||||||
Output circuit | |||||||
| Number of outputs | 4 Piece(s) | ||||||
| Max. number of integrated digital outputs | 4 Piece(s) | ||||||
| Type of digital output | Transistor | ||||||
| Short circuit protection, outputs | Yes | ||||||
| Min. voltage permitted at the output | 16.2 V | ||||||
| Max. voltage permitted at the output | 30 V | ||||||
| Output current | 4 A | ||||||
Control circuit | |||||||
| Number of inputs | 20 Piece(s) | ||||||
| Voltage permitted at the input | 30 V | ||||||
| Max. rated control supply voltage at DC | 30 V | ||||||
| Min. rated control supply voltage at DC | 15.6 V | ||||||
| Input current at signal 1 | 2.3 mA | ||||||
Interface | |||||||
| Type | Internal bus (SBUS+) | ||||||
Service interface | |||||||
| Type | USB | ||||||
USB | |||||||
| Function | Configuration via software | ||||||
| Type | USB | ||||||
Connection | |||||||
| Number of connections | 2 Piece(s) | ||||||
Connection 1 | |||||||
| Type of connection | Terminal | ||||||
| Function | Voltage supply, Signal IN, Signal OUT | ||||||
| Type of terminal | Screw terminal | ||||||
| No. of pins | 31 -pin | ||||||
| Number of connections | 2 Piece(s) | ||||||
Connection 2 | |||||||
| Type of connection | USB | ||||||
| Function | Configuration interface | ||||||
| Connector type | USB 2.0 Mini-A | ||||||
| Number of connections | 2 Piece(s) | ||||||
<img class="noprint nodialog" src="https://www.ifm.com/img/collapse.gi</strong> | |||||||
Basic data- Цена: Цену уточняйте
