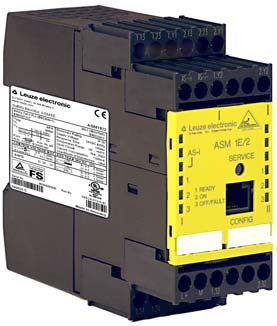

580021 | ASM1/2 - AS-i safety monitor
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | ASM1 | ||||||
Functions | |||||||
| Functions | Service button for manual error unlocking and automatic device swap-out of the safe AS-i slaves, Activation/deactivation of function modules, Diagnostics data transfer via AS-Interface, Dynamic contactor monitoring (EDM), selectable, Error unlocking via AS-Interface, Monitoring modules with contact-simultaneity monitoring, Programmable logic operators, system statuses, Start/restart interlock (RES), selectable, Status LED display for AS-Interface communication, OSSD, start/restart interlock, protective mode, errors, STOP 0 / STOP 1, Support of AS-Interface A/B technology, System signal output | ||||||
| Number of configurable function modules | 32 Piece(s) | ||||||
| Number of programmable logic operators, OR (inputs) | 2 Piece(s) | ||||||
| Muting function | No | ||||||
Characteristic parameters | |||||||
| SIL | 3, IEC 61508 | ||||||
| SILCL | 3, IEC/EN 62061 | ||||||
| Performance Level (PL) | e, EN ISO 13849-1 | ||||||
| PFHD | 9.1E-09 per hour | ||||||
| Mission time | 20 years, EN ISO 13849-1 | ||||||
| Category | 4, EN ISO 13849 | ||||||
| STOP category | 0 and 1, IEC/EN 60204-1 | ||||||
| B10d at DC13 (inductive load) | 10,000,000 number of cycles, (I < 2 A, 24 V) | ||||||
| B10d at AC15 (inductive load) | 100,000 number of cycles, (2 A, 230 V), 250,000 (1 A, 230 V), 540,000 (0.5 A, 230 V) | ||||||
Electrical data | |||||||
| Number of safety monitors per AS-Interface network | 4 Piece(s) | ||||||
| Number of safety monitors, additional text | With maximum 31 integrated AS-Interface slaves | ||||||
| Protective circuit | Short circuit protected, Polarity reversal protection | ||||||
Performance data | |||||||
| Supply voltage UB | 24 V, DC, -15 ... 15 % | ||||||
| Current consumption, max. | 200 mA, Without external load | ||||||
| Current consumption from AS-i circuit | 45 mA | ||||||
| Overvoltage category | III, For rated operating voltage of 300 V AC in accordance with VDE 0110 part 1 | ||||||
| Fuse | External with max. 4 A semi time-lag | ||||||
| Protective circuit | Short circuit protected, Polarity reversal protection | ||||||
Inputs | |||||||
| Number of digital switching inputs | 2 Piece(s) | ||||||
Switching inputs | |||||||
| Type | Digital switching input | ||||||
| Number of digital switching inputs | 2 Piece(s) | ||||||
| Protective circuit | Short circuit protected, Polarity reversal protection | ||||||
Outputs | |||||||
| Number of safety-related switching outputs (OSSDs) | 2 Piece(s) | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Switching outputs | |||||||
| Type | Digital switching output | ||||||
| Switching voltage, typ. | 22 V | ||||||
| Voltage type | DC | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
| Protective circuit | Short circuit protected, Polarity reversal protection | ||||||
Timing | |||||||
| System reaction time | 40 ms | ||||||
| Readiness delay | 10 ms | ||||||
<img class="noprint nodialog" src="https:/</strong> | |||||||
Basic data- Цена: Цену уточняйте
