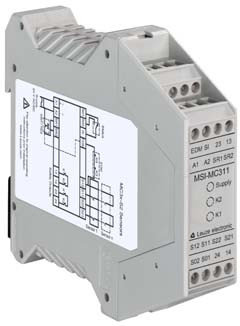

549942 | MSI-MC311 - Safety relay
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | MSI-MC3x | ||||||
Functions | |||||||
| Functions | Start/restart interlock (RES), Automatic start/restart, Static contactor monitoring (EDM), Stop function according to category Stop 0 | ||||||
| Restart | Automatic, Manual | ||||||
Characteristic parameters | |||||||
| Performance Level (PL) | Up to and including e, EN ISO 13849-1 | ||||||
| PFHD | 2,5E-08 per hour | ||||||
| Mission time | 20 years, EN ISO 13849-1 | ||||||
| Category | Up to and including 4: 1 sensor connected, EN ISO 13849 | ||||||
| STOP category | 0, IEC/EN 60204-1 | ||||||
Electrical data | |||||||
| Protective circuit | Fuse on switching output, upstream | ||||||
| Input current, max. | 220 mA | ||||||
| External contact fuse protection per current path | 4 A gG | ||||||
Performance data | |||||||
| Supply voltage UB | |||||||
| External contact fuse protection per current path | 4 A gG | ||||||
Outputs | |||||||
| Number of safety-related switching outputs (OSSDs) | 2 Piece(s) | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Safety-related switching outputs | |||||||
| Type | Safety-related switching output OSSD | ||||||
| Voltage type | AC/DC | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Safety-related switching output 1 | |||||||
| Switching element | Relay, NO | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Safety-related switching output 2 | |||||||
| Switching element | Relay, NO | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Switching outputs | |||||||
| Type | Digital switching output | ||||||
| Voltage type | AC/DC | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Switching output 1 | |||||||
| Switching element | Relay, NO | ||||||
| Function | EDM switching output | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
| External contact fuse protection per current path | 4 A gG | ||||||
Timing | |||||||
| Response time | 20 ms | ||||||
| Pickup delay, automatic start | 30 ms | ||||||
| Pickup delay, manual start | 150 ms | ||||||
Connection | |||||||
| Number of connections | 1 Piece(s) | ||||||
Connection 1 | |||||||
| Type of connection | Terminal | ||||||
| Function | Voltage supply, Connection to device | ||||||
| Type of terminal | Screw terminal | ||||||
| No. of pins | |||||||
Basic data- Цена: Цену уточняйте
