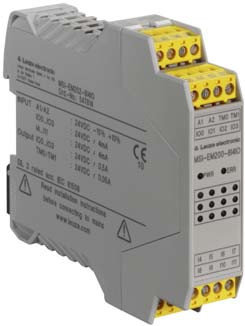

547804 | MSI-EM201-8I4IO - Safe I/O module
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | MSI-EM | ||||||
| Application | Monitoring of safety functions | ||||||
| Number of safe I/Os | 8 IN, 4 programmable I/O | ||||||
Functions | |||||||
| Functions | Monitoring of all safe functions in machines and systems, Extension module for the MSI 200 programmable safety controller, Extension with 8 safe inputs and 4 safe, freely configurable channels-either as safe inputs or outputs (OSSDs) | ||||||
Characteristic parameters | |||||||
| SIL | 3, IEC 61508 | ||||||
| SILCL | 3, IEC/EN 62061 | ||||||
| Performance Level (PL) | e, EN ISO 13849-1 | ||||||
| PFHD | 1,6E-09 per hour | ||||||
| Mission time | 20 years, EN ISO 13849-1 | ||||||
| Category | 4, EN ISO 13849 | ||||||
Electrical data | |||||||
| Protective circuit | Overvoltage protection | ||||||
Performance data | |||||||
| Supply voltage UB | 24 V, DC, -15 ... 10 % | ||||||
| Overvoltage category | III | ||||||
| Protective circuit | Overvoltage protection | ||||||
Input data logic | |||||||
| Diagnostics display | 2 LEDs (green, red) | ||||||
| Reaction time, max. | 30 ms | ||||||
| Nominal input voltage UN | 24 V DC, -15 ... 10 %, (A1/A2) | ||||||
| Typ. current consumption at UN (A1/A2) | 100 mA | ||||||
| Bridging of voltage drops | 20 ms | ||||||
| Protective circuit | Overvoltage protection | ||||||
Inputs | |||||||
| Number of safe inputs | |||||||
| Status indicator | 1 LED (green) per input | ||||||
| Nominal voltage UN | 24 V DC | ||||||
| Typ. current consumption at UN | 4 mA | ||||||
| Signal level at "0", max. | 5 V | ||||||
| Signal level at "1", min. | 11 V | ||||||
| Protective circuit | Overvoltage protection | ||||||
Outputs | |||||||
| Number of safe semiconductor outputs | 4 Piece(s), (Cat. 4 / EN ISO 13849-1 / EN 954) for configuration of the 4 inputs/outputs as outputs | ||||||
| Number of clock/signal outputs | 2 Piece(s), Can be used as pulse output or signal output depending on configuration | ||||||
Output data | |||||||
| Nominal voltage | 24 V DC, -15 ... 10 % | ||||||
| Status indicator | 1 LED (green) per output | ||||||
| Limiting continuous current | 0.5 A | ||||||
| Number of clock/signal outputs | 2 Piece(s), Can be used as pulse output or signal output depending on configuration | ||||||
Clock outputs | |||||||
| Nominal voltage | 24 V DC | ||||||
| Limiting continuous current | 50 mA | ||||||
| Number of clock/signal outputs | 2 Piece(s), Can be used as pulse output or signal output depending on configuration | ||||||
Signal outputs | |||||||
| Nominal voltage | 24 V DC | ||||||
| Limiting continuous current | 50 mA | ||||||
| Number of clock/signal outputs | |||||||
Basic data- Цена: Цену уточняйте
