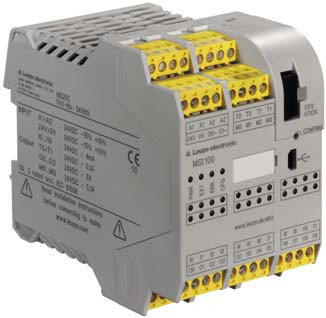

547802 | MSI101 - Safety control

547802 | MSI101 - Safety control, фото 2
Описание
Информация для заказа

Техническая спецификация в PDF

Basic data

SeriesMSI 100
ApplicationMonitoring of safety functions
Number of safe I/Os20 IN, 4 OUT

Functions

FunctionsFreely configurable safety main module, Monitoring of all safe functions in machines and systems, Transfer of diagnostic data via MSI-FB fieldbus module (optional)

Characteristic parameters

SIL3, IEC 61508
SILCL3, IEC/EN 62061
Performance Level (PL)e, EN ISO 13849-1
MTTFd8,324 years, EN ISO 13849-1
PFHD1.4E-08 per hour
Mission time20 years, EN ISO 13849-1
Category4, EN ISO 13849

Electrical data

Protective circuitOvervoltage protection, Short circuit protected

Performance data

Supply voltage UB24 V, DC, -15 ... 10 %
Current consumption (without load), max.200 mA
Overvoltage categoryIII
Protective circuitOvervoltage protection, Short circuit protected

Input data logic

Diagnostics display4 LEDs (green, red)
Reaction time, max.30 ms
Nominal input voltage UN24 V DC, -15 ... 10 %, (A1/A2)
Typ. current consumption at UN (A1/A2)110 mA
Bridging of voltage drops20 ms
Protective circuitOvervoltage protection, Short circuit protected

Inputs

Number of safe inputs
Status indicator20 LEDs (green)
Nominal voltage UN24 V DC, (to ground A1/A2)
Typ. current consumption at UN4 mA
Signal level at "0", max.5 V
Signal level at "1", min.11 V
Protective circuitOvervoltage protection, Short circuit protected

Outputs

Number of signal outputs4 Piece(s)
Number of safe semiconductor outputs4 Piece(s), (Cat. 4 / EN ISO 13849-1 / EN 954)
Number of ground-switching outputs2 Piece(s)
Number of cycle outputs2 Piece(s)

Output data

Nominal voltage24 V DC, -15 ... 10 %, (24 V / 0 V)
Status indicator4 LEDs (green)
Limiting continuous current2 A
Number of cycle outputs2 Piece(s)

Clock outputs

Nominal voltage24 V DC, (A1/A2)
Limiting continuous current100 mA
Number of cycle outputs2 Piece(s)

Signal outputs

Nominal volta
  • Цена: Цену уточняйте
