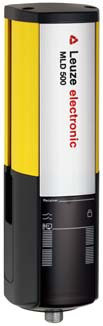

66563400 | MLD530-XR1 - Single beam safety device receiver
Описание
Информация для заказа
Basic data | |||||||
|---|---|---|---|---|---|---|---|
| Series | MLD 500 | ||||||
Functions | |||||||
| Functions | Contactor monitoring (EDM), selectable, Alternative connection for second muting signal, Muting enable function, Muting-timeout extension, Partial muting, Sequence controlled 2-sensor muting, Start/restart interlock (RES), Timing controlled 2-sensor muting | ||||||
Characteristic parameters | |||||||
| Type | 4, IEC/EN 61496 | ||||||
| SIL | 3, IEC 61508 | ||||||
| SILCL | 3, IEC/EN 62061 | ||||||
| Performance Level (PL) | e, EN ISO 13849-1 | ||||||
| MTTFd | 204 years, EN ISO 13849-1 | ||||||
| PFHD | 6.6E-09 per hour | ||||||
| Mission time | 20 years, EN ISO 13849-1 | ||||||
| Category | 4, EN ISO 13849 | ||||||
Electrical data | |||||||
| Selection of operating mode | Connection 1, pin 2: +24 V for operating mode 1, 2, 4, Connection 1, pin 2: 0 V for operating mode 3, 5, 6, Connection 1, pin 7: +24 V for operating mode 3, 5, 6, Connection 1, pin 7: 0 V for operating mode 1, 2, 4 | ||||||
| Protective circuit | Short circuit protected, Overvoltage protection | ||||||
Performance data | |||||||
| Supply voltage UB | 24 V, DC, -20 ... 20 % | ||||||
| Current consumption, max. | 150 mA, Without external load | ||||||
| Fuse | External with max. 3 A | ||||||
| Protective circuit | Short circuit protected, Overvoltage protection | ||||||
Inputs | |||||||
| Number of digital switching inputs | 4 Piece(s) | ||||||
Switching inputs | |||||||
| Type | Digital switching input | ||||||
| Switching voltage high, min. | 18.2 V | ||||||
| Switching voltage low, max. | 2.5 V | ||||||
| Switching voltage, typ. | 23 V | ||||||
| Voltage type | DC | ||||||
| Switching current, max. | 5 mA | ||||||
| Number of digital switching inputs | 4 Piece(s) | ||||||
| Protective circuit | Short circuit protected, Overvoltage protection | ||||||
Outputs | |||||||
| Number of safety-related switching outputs (OSSDs) | 2 Piece(s) | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Safety-related switching outputs | |||||||
| Type | Safety-related switching output OSSD | ||||||
| Switching voltage high, min. | 18.2 V | ||||||
| Switching voltage low, max. | 2.5 V | ||||||
| Switching voltage, typ. | 23 V | ||||||
| Voltage type | DC | ||||||
| Current load, max. | 380 mA | ||||||
| Load inductivity | 2,200,000 µH | ||||||
| Load capacity | 0.3 µF | ||||||
| Residual current, max. | 0.2 mA | ||||||
| Residual current, typ. | 0.002 mA | ||||||
| Voltage drop | 1 V | ||||||
| Number of digital switching outputs | 1 Piece(s) | ||||||
Safety-related switching output 1 | |||||||
| Switching element | Transistor, PNP | ||||||
| Number of digital switching outputs | |||||||
Basic data- Цена: Цену уточняйте
