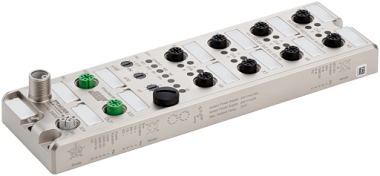

54503 | SOLID67 DIO16 60mm M12L 5P
Описание
Информация для заказа
Input | |
---|---|
Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected |
Type | for 3-wire sensors or mechanical switches, PNP |
Connections | |
Fieldbus | Ethernet 10/100 Mbit/s{} M12, D-coded |
Sensor-system/actuator supply | M12 Power, 5-pole, L-coded |
I/O ports | M12, 5-pole, A-coded |
General data | |
Protection | IP67 |
Mounting method | 2-hole screw mounting |
Dimensions H ? W ? D | 30.7?60?200 mm |
Temperature range | -20...+70 °C |
EtherNet/IP | |
Addressing | DHCP, BOOTP or IP address by rotary switch |
QC (Quick Connect) | max. 500 ms |
DLR (Device Level Ring) | yes |
PROFINET | |
Addressing | DCP |
PROFINET Netload Class | III |
Specification | V2.3, Conformance Class C (IRT) |
MRP | yes |
Output | |
Actuator supply UA | 24 V DC (EN 61131-2), max. 9 A |
Switching current per output | max. 2 A (short-circuit and overload protected) |
Parameterization | |
PIN 4 | Input/Output (port X1...X8) |
PIN 2 | Input/Output (port X1...X8) |
Diagnostic | |
Communication status | via LED |
Diagnostic via LED | per module and channel |
Diagnostic via BUS | per module and channel |
Monitoring - under voltage | yes |
Monitoring - no voltage | yes |
Short-circuit and overload | yes |
Actuator warning | via LED and BUS |
Cable break | per port |
Commercial data | |
country of origin | DE |
customs tariff number | 85389099 |
EAN | 4048879752275 |
eClass | 27242604 |
Packaging unit | 1 |
По вопросу интересующей Вас продукции, пожалуйста, свяжитесь с нами:
8 (029) 555-8-000 | |
8 (044) 555-8-000 | |
8 (017) 255-8-000 |
Или отправьте нам запрос на e-mail: zapros@filfar.by
- Цена: Цену уточняйте
