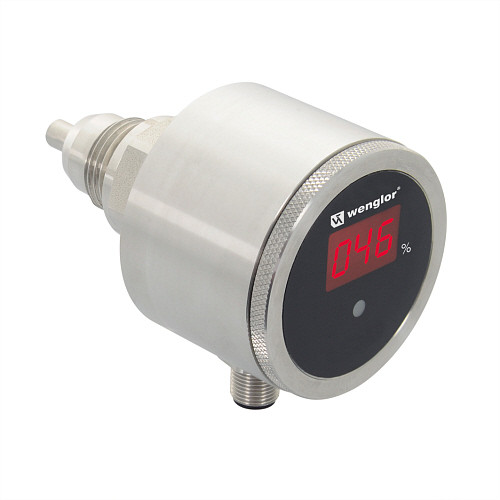

FFXF013
Описание
Информация для заказа
Sensor-specific data | |
---|---|
Selectable measuring range | 10...300 cm/s |
Measuring range 1 | 10...150 cm/s |
Adjustable range 1 | 15...150 cm/s |
Measuring range 2 | 20...300 cm/s |
Adjustable range 2 | 30...300 cm/s |
Medium | Water |
Measuring error | 2 % |
Switching Hysteresis | 5 % |
Temperature gradient | 30 K |
Response time in case of temperature jump | 10 s |
Environmental conditions | |
Temperature of medium | 0...100 °C |
Temperature of the medium, short-term | 140 °C |
Ambient temperature | -20...70 °C |
Mechanical Strength | 60 bar |
EMC | DIN EN 60947-5-9 |
Shock resistance per DIN IEC 68-2-27 | 30 g / 11 ms |
Vibration resistance per DIN IEC 60068-2-6 | 20 g (10...2000 Hz) |
Electrical Data | |
Supply Voltage | 16...32 V DC |
Current Consumption (Ub = 24 V) | 60 mA |
Switching Outputs | 1 |
Analog Output | 0...10 V Flow |
Response Time | 1...5 s |
Relay Output/Switching Current (24 VDC) | <{} 1 A |
Load Current Voltage Output | <{} 20 mA |
Short Circuit Protection | yes |
Reverse Polarity Protection | yes |
Protection Class | III |
Mechanical Data | |
Setting Method | Menu |
Housing Material | 1.4404{} PC{} EPDM |
Material Control Panel | Polyester |
Material in contact with media | 1.4435{} 1.4404 |
Degree of Protection | IP67/IP69K * |
Connection | M12 ? 1{} 4-pin |
Process Connection | G 1/2"{} CIP-capable |
Process Connection Length (PCL) | 48 mm |
Probe Length (PL) | 10 mm |
Safety-relevant Data | |
MTTFd (EN ISO 13849-1) | 766,91 a |
Output | |
Analog output flow | yes |
Relay NO/NC switchable | yes |
Connection Diagram | |
Ctrl. Panel | |
Dimensioned Picture | |
All dimensions in mm (1 mm = 0.03937 Inch) | |
Complementary Products | |
Software |
