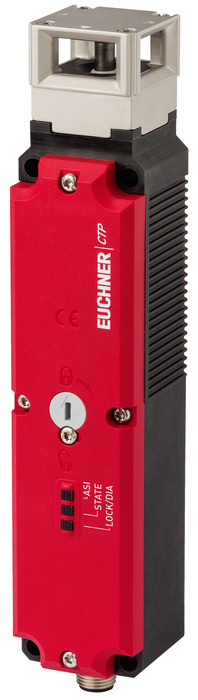

124987 | CTP-L1-AS1B-U-HA-AZ-SJ-124987
Описание
Информация для заказа
Mechanical values and environment | |
|---|---|
| Housing material | |
| Safety switch housing | Fiber glass reinforced thermoplastic |
| Weight | |
| Net | 0,42 kg |
| Ambient temperature | -20 ... +55 °C |
| Degree of protection | IP67 / IP69 / IP69K Screwed tight plug connector/mating component |
| Resilience to vibration | In acc. with EN IEC 60947-5-3 |
| Mechanical life | 1 x 106 |
| Installation position | Any |
| Ready delay | max.1 s |
| Switching frequency | max.0,5 Hz |
| Connection | 1 plug connector M12, 4-pin |
| Approach speed | 20 m/min |
| Guard locking principle | Closed-circuit current principle |
| Locking force Fmax | 3900 N |
| Locking force FZh | 3000 N Fzh = Fmax/1.3 Depending on the actuator used |
| Retention force | 20 N |
| Extraction force | 20 N |
| Actuating force | 10 N |
| Overtravel | 5 mm |
Electrical connection ratings | |
| ASi voltage | 26,5 ... 30 V 31,6 V |
| ASi operating current | 50 mA |
| ASi auxiliary voltage | |
| IEC 60742, PELV | 24 V -15% ... +10% |
| ASi auxiliary current | 400 mA |
| ASi slave type | |
| According to ASI specification 3.0 | EA code: 7 |
| According to ASI specification 3.0 | ID code: B |
| ASi data in | |
| According to As-i Safety at Work | D0 Door position |
| According to As-i Safety at Work | D1 Door position |
| According to As-i Safety at Work | D2 Guard locking |
| According to As-i Safety at Work | D3 Guard locking |
| ASi data out | |
| Guard locking solenoid | D0 1 = Solenoid energized |
| Safety class | |
| EN IEC 61140 | III |
Operating distance | |
| Repeat accuracy R | |
| According to EN 60947-5-2 | 10 % |
Miscellaneous | |
| For the approval according to UL the following applies | Operation only with UL class 2 power supply, or equivalent measures see operating instructions |
Reliability values acc. to EN ISO 13849-1 | |
| Performance Level | PL e |
| Category | 4 |
| PFHD | 4.3 x 10 -9 |
| Mission time | 20 y |
Mechanical values and environment
