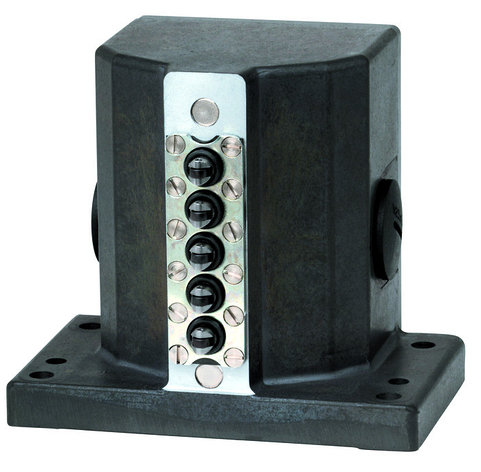

099903 | RGBF04D12-502AMLE024GE-MC2177
Описание
Информация для заказа
Mechanical values and environment | |
|---|---|
| Contact bounce time | <> |
| Contact closing time | <> |
| Design | Upright, according to DIN 43697 |
| Housing material | Die-cast aluminum, anodized |
| Weight | |
| Net | 1 kg |
| Ambient temperature | -5 ... 70 °C |
| Degree of protection | IP65 Only screwed tight with the related mating connector. |
| Mechanical life | 30 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Snap-action switching contact |
| Plunger spacing | 12 mm |
| Installation position | Any |
| Number of switching elements | 4 |
| Number of NC contacts | 4 |
| Number of NO contacts | 4 |
| Connection | 1 x plug connector RC18 Coninvers RC18, 19-pin (18+PE). Not adjustable. Cable outlet for angle plug connector to rear. |
| Approach speed | 0,01 ... 20 m/min |
| Actuating element | Chisel plunger |
| Actuating force | min.20 N |
| Operating point accuracy | ± 0.002 The reproducible switching point accuracy refers to the axial travel of the plunger after the switching element ES 502 E has been run-in with approx. 2000 operating cycles. |
Electrical connection ratings | |
| Rated thermal current Ith | 4 A |
| Utilization category according to EN 60947-5-1 | |
| AC-15 | 5A 24V |
| DC-13 | 5A 24V |
| Short circuit protection according to IEC 60269-1 | |
| (Fuse) | 4A gG |
| Rated insulation voltage Ui | 60 V |
| Rated impulse withstand voltage Uimp | 2 kV |
| Switching current | |
| Min. at DC 12V | min.10 mA |
| Display module | |
| DC | 21,6 ... 24 V 26,4 V LED yellow |
Miscellaneous | |
| C number | |
| C2177 | With Conivers plug connector (19-pin) mounted on right + special wiring |
| Additional information | Exterior diaphragm = AM The exterior diaphragm provides additional protection to the plunger guide. Plunger sticking, primarily caused by resinous lubricating coolants, can be prevented by this exterior diaphragm version. |
Mechanical values and environment
