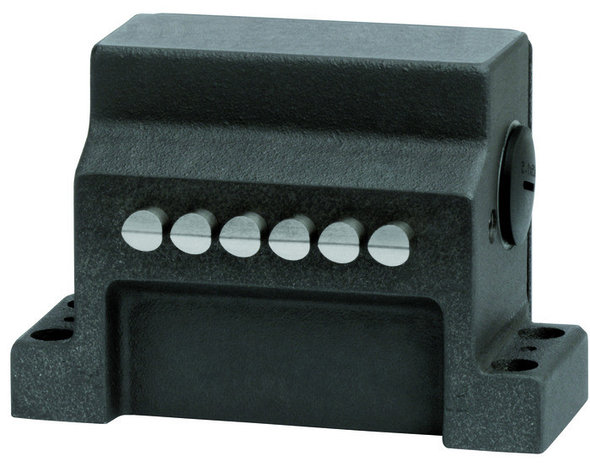

091151 | GLBF04D12-1508-M
Описание
Информация для заказа
Mechanical values and environment | |
|---|---|
| Design | Horizontal |
| Housing material | Die-cast aluminum, anodized |
| Weight | |
| Net | 1,9 kg |
| Ambient temperature | -5 ... 80 °C |
| Degree of protection | IP67 |
| Mechanical life | 30 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | |
| Switching element ES508 | Slow-action switching contact Applies for station 1 |
| Switching element ES502E | Snap-action switching contact Contact closing time < 4ms,="" contact="" bounce="" time="">< 3ms,="" applies="" from="" station=""> |
| Plunger spacing | 12 mm |
| Installation position | Any |
| Number of switching elements | 4 |
| Number of positively driven contacts | 1 |
| Number of NC contacts | 3 |
| Number of NO contacts | 3 |
| Connection | |
| 4 x | M25 x 1.5 |
| Approach speed | |
| max. | 0,01 ... 40 m/min |
| Actuating element | Chisel plunger |
| Actuating force | min.20 N |
| Operating point accuracy | ± 0.002 The reproducible switching point accuracy refers to the axial travel of the plunger after the switching element ES 502 E has been run-in with approx. 2000 operating cycles. |
Electrical connection ratings | |
| Rated thermal current Ith | 8 A |
| Utilization category according to EN 60947-5-1 | |
| AC-15 | 6A 230V |
| DC-13 | 6A 24V |
| AC-12 | 8 A, 250 V Applies from station 2 |
| Short circuit protection according to IEC 60269-1 | |
| (Fuse) | 8A gG |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2,5 kV |
| Switching current | |
| Min. at DC 24V switching element ES508 | min.10 mA Applies for station 1 |
| Min. at DC 12V switching element ES502E | min.10 mA Applies from station 2 |
| Connection cross-section | 0,34 ... 1,5 mm? |
Miscellaneous | |
| Additional information | Mixed contact assembly On horizontal multiple limit switches it is necessary to start with the safety station/s on the left side (view on the plunger side). If several safety stations are to be fitted, these must be fitted directly one after the other. |
Reliability values acc. to EN ISO 13849-1 | |
| B10D | 20 x 106 |
Mechanical values and environment
