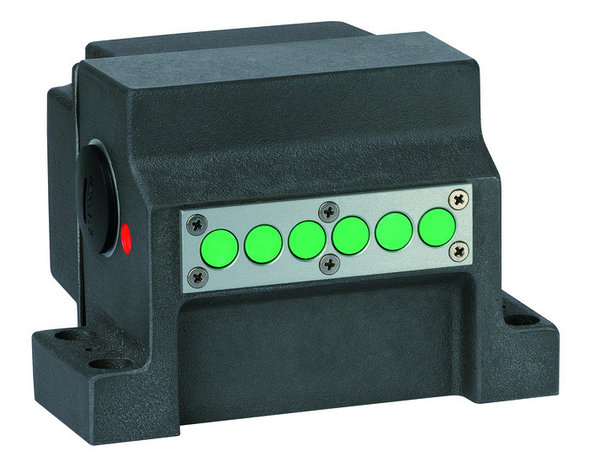

088571 | GLBF02X16-781L-M
Описание
Информация для заказа
Mechanical values and environment | |
---|---|
Design | Horizontal |
Material | |
Active face | PBT |
Housing material | Sand-cast aluminum |
Weight | |
Net | 1,4 kg |
Ambient temperature | -25 ... 70 °C |
Degree of protection | IP67 |
Proximity switch spacing | 16 mm |
Switching principle | NO + NC |
Switching frequency | max.500 Hz |
Number of switching elements | 2 |
Number of NC contacts/NO contacts | 2 |
Connection | |
3 x | M25 x 1.5 |
Electrical connection ratings | |
Operating voltage | |
DC | 10 ... 55 V |
Rated operating current Ie | 250 mA |
Utilization category according to EN 60947-5-2 | |
DC-12 | DC-13 The output is to be protected with a free-wheeling diode for inductive loads. |
Short circuit and overload protection, pulsed | Yes |
Rated insulation voltage Ui | |
DC | 60 V |
Residual ripple | max.10 % |
Reverse polarity protection | Yes |
EMC protection requirements | EN IEC 60947-5-2 |
Type of output | PNP |
No-load current I0 | max.15 mA |
Off-state current Ir | max.0,001 mA |
Voltage drop Ud | max.2,5 V |
Connection cross-section | 0,34 ... 1,5 mm? |
LED indicator | Yes |
Operating distance | |
Repeat accuracy R | |
According to EN 60947-5-2 | max.5 % |
Rated operating distance Sn | 2 mm |
Assured operating distance Sa | 0 ... 1,6 mm Dimension only applies for steel (ST37) and for EUCHNER trip dogs of series UX.. / GX.. |
Switching hysteresis | max.0,2 mm |
Miscellaneous | |
Additional information | Switching elements with 5mm operating distance (16mm proximity switch spacing) are supplied with two different oscillator frequencies to avoid mutual interference. Multiple limit switches must therefore be assembled alternately with these switching elements. |
По вопросу интересующей Вас продукции, пожалуйста, свяжитесь с нами:
8 (029) 555-8-000 | |
8 (044) 555-8-000 | |
8 (017) 255-8-000 |
Или отправьте нам запрос на e-mail: zapros@filfar.by
- Цена: Цену уточняйте
