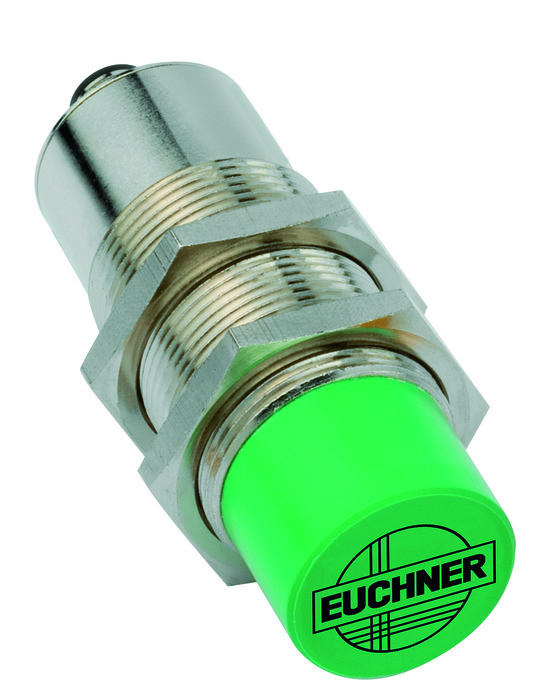

071900 | CIT3APL1N30-STA
Описание
Информация для заказа
Mechanical values and environment | |
|---|---|
| Housing material | CuZn, nickel-plated |
| Ambient temperature | 0 ... 50 °C |
| Degree of protection | IP67 |
| Mounting method | Surface |
| Connection | M12 plug, 8-pin, axial connection The screen on the connection cable is connected to the read head's housing via the knurled nut on the M12 plug connector. |
Electrical connection ratings | |
| Operating voltage DC | 20 ... 28 V DC All the electrical connections must either be isolated from the mains supply by a safety transformer according to IEC/EN 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent isolation measures. |
| Current consumption | 110 ... 150 mA |
| Switching current | -30 ... +30 mA |
| Type of output | Push-Pull |
| Resistance | Input resistance 4,5 k? |
| Output voltage | |
| For HIGH levelmin.Ub - 3 V DC | |
| For LOW levelmax.2 V DC | |
| Input voltage | |
| SKIP input HIGH levelmin.15 V DC | |
| SKIP input LOW levelmax.2 V DC | |
Interface, bus | |
| Data interface | 4 bit binary coded + strobe |
in combination withData carrier CIS3AP50X50SH16YSNOU, CIS3AP50X50SH16YSNOP | |
| Approach speed | |
| At 25°C, read distance s=12mm, center offset m=0mm for 4 hexadecimal digits | max.12 m/min Reduction for each additional hexadecimal digit (at sL = 12 mm and mL = 0 mm) 1.5 m/min |
Operating distance | |
| Read distance | |
| At 25°C, center offset m=0mm | 7 ... 12 ... 20 mm It is necessary to maintain the minimum distance on the approach of the data carrier from the side if the data must be transferred correctly to the read head in one transmission. |
in combination withData carrier CIS3P16D08KH16YSNOU, CIS3P16D08KH16YSNOP | |
| Center offset | |
| At 25°C, read distance s=12mm | -11 ... 11 mm |
Mechanical values and environment
