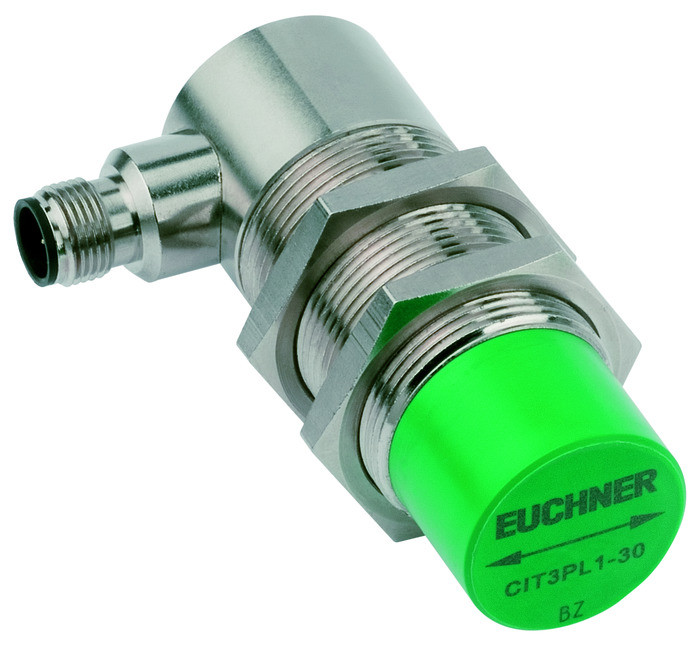

071950 | CIT3PL1N30-STR

  071950 | CIT3PL1N30-STR
Под заказТолько оптом

Цену уточняйте

  • +375 показать номер +375(44)765-55-50
  • +375(29)690-11-55

Заказ только по телефону

  • Контакты
    • Телефон:
      +375(44)765-55-50
      +375(29)690-11-55
    • Контактное лицо:
      Сергей, Владимир
    • Адрес:
      ул. Западная, д.13, каб.519, Минск, Беларусь
    • Email:
      zapros@filfar.by

Техническая спецификация в PDF

Mechanical values and environment

Housing materialCuZn, nickel-plated
Ambient temperature 0 ... 50 °C
Degree of protectionIP67
Mounting methodSurface
ConnectionM12 plug, 8-pin, radial connection The screen on the connection cable is connected to the read head's housing via the knurled nut on the M12 plug connector.

Electrical connection ratings

Operating voltage DC 20 ... 28 V DC  All the electrical connections must either be isolated from the mains supply by a safety transformer according to IEC/EN 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent isolation measures.
Current consumption65 ... 100 mA
Switching current -30 ... +30 mA
Type of outputPush-Pull
ResistanceInput resistance 4,5 k?
Output voltage
For HIGH levelmin.Ub - 3 V DC
For LOW levelmax.2 V DC
Input voltage
SKIP input HIGH levelmin.15 V DC
SKIP input LOW levelmax.2 V DC
LED indicatorYellow: Data carrier active

Interface, bus

Data interface4 bit binary coded + strobe

in combination withData carrier CIS3P16D08KH16YSNOU, CIS3P16D08KH16YSNOP

Approach speed
At 21°C, read distance s=5mm, center offset=0mm in Y direction, for 4 hexadecimalmax.19,2 m/min

Operating distance

Read distance 0 ... 5 mm 14 mm
Center offset
At 25°C, read distance s=5mm, in X direction -18 ... 18 mm
At 25°C, read distance s=5mm, in Y direction -6 ... 6 mm

in combination withData carrier CIS3P35X16SH16YHNOP, CIS3P35X16SH16YHNOU, CIS3P35X16SH16YVNOP, CIS3P35X16SH16YVNOU

Approach speed
At 21°C, read distance s=7mm, center offset=0mm in Y direction, for 4 hexadecimalmax.24,6 m/min

Operating distance

Read distance
At 21°C 0 ... 7 mm 18 mm
Center offset
At 21°C, read distance s=7mm,in X direction -23 ... 23 mm
At 21°C, read distance s=7mm,in Y direction -8 ... 8 mm
