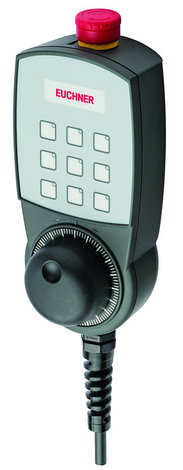

112392 | HBM-112392
Описание
Информация для заказа
Mechanical values and environment | |
|---|---|
| Material | Pocan |
| Weight | |
| Net | 1,5 kg |
| Ambient temperature | 0 ... 50 °C |
| Atmospheric humidity | |
| Condensation not permissible | max.80 % rH |
| Degree of protection | |
| IEC529 | IP65 On the front |
| acc. to NEMA 250 | 250-12 On the front |
| Resilience to vibration | |
| Vibrations (3 axes) | DIN/IEC 68-2-6 |
| Shock (3 axes) | DIN/IEC 68-2-27 |
| Connection | Plug connector 35-pin, metal version |
| Cable length | |
| coiled | 3,5 m Extended |
| Detent positions per revolution | |
| Handwheel | 100 |
Electrical connection ratings | |
| Operating voltage DC | |
| Handwheel | 5 V DC -5% ... 5% |
| Utilization category according to EN 60947-5-2 | |
| DC-13 | 30V DC / 1A |
| Switching voltage | |
| Enabling switch | max.AC/DC 42 V |
| Membrane keypad | max.AC/DC 42 V |
| Switching current | |
| Enabling switch | max.100 mA |
| EMC protection requirements | |
| Acc. to CE | EN 61000-6-2, EN 61000-6-4 |
| Type of output | |
| Handwheel | RS422 |
| Connecting cable | 35x0.14mm? Screened |
| Pulses per revolution | |
| Handwheel | 2x100 |
| Breaking capacity (VA) | |
| Enabling switch | max.1 VA |
| Membrane keypad | max.1 VA Common connection |
| Power supply LED | max.24 V DC |
Controls and indicators | |
| Control/indicator | 1 |
| Version | Emergency stop |
| Switching element | 2 positively driven contacts |
| Special features | - |
| Color | Red-yellow |
| Item | See data sheets |
| Control/indicator | 1 |
| Version | Enabling switches, 3-stage |
| Switching element | 2 NO contacts |
| Special features | - |
| Color | - |
| Item | See data sheets |
| Control/indicator | 9 |
| Version | Membrane key |
| Switching element | 1 NO contact each |
| Special features | Can be labeled using slide-in strips |
| Color | - |
| Item | See data sheets |
| Control/indicator | 1 |
| Version | Handwheel |
| Switching element | - |
| Special features | - |
| Color | Black plastic adjusting wheel |
| Item | See data sheets |
Miscellaneous | |
Mechanical values and environment- Цена: Цену уточняйте
