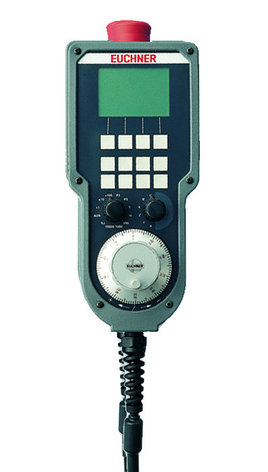

072725 | HBLS072725
Описание
Информация для заказа
Mechanical values and environment | |
|---|---|
| Material | Polyamide |
| Weight | |
| Net | 2,5 kg |
| Ambient temperature | 0 ... 55 °C |
| Atmospheric humidity | |
| Condensation not permissible | max.80 % rH |
| Degree of protection | |
| IEC529 | IP65 On the front |
| acc. to NEMA 250 | 250-12 On the front |
| Resilience to vibration | |
| Vibrations (3 axes) | DIN/IEC 68-2-6 |
| Shock (3 axes) | DIN/IEC 68-2-27 |
| Connection | Plug connector 23-pin, metal version |
| Cable length | |
| straight | 3,5 m |
| Detent positions per revolution | |
| Handwheel | 100 |
Electrical connection ratings | |
| Operating voltage DC | |
| Handwheel | 5 V DC -5% ... 5% |
| 24 V DC -20% ... 20% | |
| Current consumption | 150 mA Without LEDs switched on |
| Utilization category according to EN 60947-5-2 | |
| DC-13 | |
| Switching voltage | |
| Enabling switch | DC 5 ... DC 230 V |
| Switching current | |
| Enabling switch | max.3000 mA On DC-13 |
| Type of output | |
| Handwheel | RS422 |
| Connecting cable | 4X0.34mm?+4X0.34mm?+15X0.14mm? To some extent individual screening |
| Pulses per revolution | |
| Handwheel | 2x100 |
Interface, bus | |
| Data interface | RS422 |
| Data protocol | 3964R, 8 data bits, even parity |
| Data rate | max.19,2 kbit/s 9,6 kbit/s Can be selected via DIP switches |
Controls and indicators | |
| Control/indicator | |
| Version | Emergency stop |
| Switching element | 2 positively driven contacts |
| Special features | - |
| Color | Red-yellow |
| Item | See data sheets |
| Control/indicator | 2 |
| Version | Enabling switch ZSG |
| Switching element | 2 NO contacts each |
| Special features | - |
| Color | - |
| Item | See data sheets |
| Control/indicator | |
| Version | Handwheel |
| Switching element | - |
| Special features | - |
| Color | Gray dial |
| Item | See data sheets |
| Control/indicator | 12 Change is transferred via the protocol |
| Version | Buttons |
| Switching element | - |
| Special features | Illuminated |
| Color | - |
| Item | See data sheets |
| Control/indicator | 2 <span class="</td> |
Mechanical values and environment- Цена: Цену уточняйте
