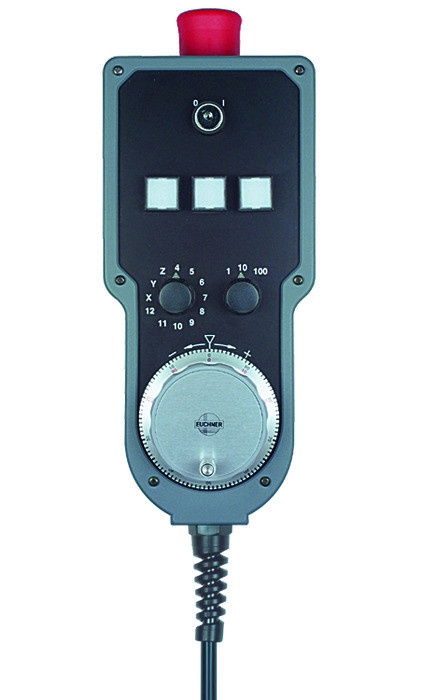

097339 | HBL-097339 alt: 072598

097339 | HBL-097339 alt: 072598, фото 2
Описание
Информация для заказа

Техническая спецификация в PDF

Mechanical values and environment

MaterialPolyamide
Weight
Net 2,2 kg
Ambient temperature 0 ... 55 °C
Atmospheric humidity
Condensation not permissiblemax.80 % rH
Degree of protection
IEC529IP65 On the front
acc. to NEMA 250250-12 On the front
Resilience to vibration
Vibrations (3 axes)DIN/IEC 68-2-6
Shock (3 axes)DIN/IEC 68-2-27
ConnectionPlug connector 35-pin, metal version
Cable length
straight 3,5 m
Detent positions per revolution
Handwheel 100

Electrical connection ratings

Operating voltage DC
Handwheel 5 V DC  -5% ... 5%
Utilization category according to EN 60947-5-2
DC-13
Switching voltage
Enabling switch DC 5 ... DC 230 V
Keymax.AC/DC 250 V
Key-operated switchmax.AC/DC 42 V
Selector switch 1ofXmax.DC 60 V
Selector switch hexmax.DC 60 V
Switching current
Enabling switchmax.3000 mA  On DC-13
Keymax.5000 mA
Key-operated switchmax.AC/DC 250 mA
Selector switch 1ofXmax.0,25 mA
Selector switch hexmax.0,25 mA
EMC protection requirements
Acc. to CEEN 61000-6-2, EN 61000-6-4
Type of output
HandwheelRS422
Connecting cable35x0.14mm? Screened
Pulses per revolution
Handwheel 2x100
Breaking capacity (VA)
Selector switch 1ofXmax.6 VA
Selector switch hexmax.6 VA
Power supply LED -10% ... 24 V DC +10% V DC  AC/DC

Controls and indicators

Control/indicator 1
VersionEmergency stop
Switching element2 positively driven contacts
Special features-
ColorRed-yellow
ItemSee data sheets
Control/indicator 1
VersionEnabling switches, 3-stage
Switching element2 NO contacts + 1 NC contact
Special features-
Color-
ItemSee data sheets
Control/indicator 1
VersionKey-operated switch
Switching element1 NO contact + 1 NC contact
Special features
