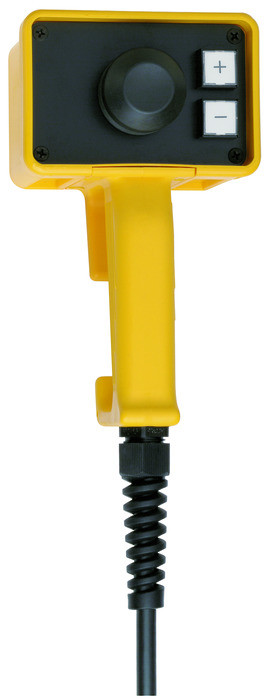

054784 | ZSB054784

054784 | ZSB054784, фото 2
Описание
Информация для заказа

Техническая спецификация в PDF

Mechanical values and environment

Material
HousingPlastic yellow
CapElastomer PAK arm, black
Weight
Net 2,5 kg
Ambient temperature -5 ... 50 °C
Degree of protectionIP65
Mechanical life
Position 1-2-1min.0,1 x 106
Position 1-2-3-1min.0,1 x 106
Switching principleSlow-action contact element
Number of positively driven contacts 1
Number of NO contacts 2
ConnectionFlying lead
Cable length
coiled 7 m

Electrical connection ratings

Rated conditional short-circuit current 100 A
Utilization category according to EN 60947-5-1
AC-152A 24V
400mA 24V
DC-132A 24V
100mA 24V
Short circuit protection according to IEC 60269-1
at 24V2A gG In case of operating voltages other than DC 24V, the short circuit protection must be dimensioned accordingly and checked.
Additional elements at 24V0.1A gG In case of operating voltages other than DC 24V, the short circuit protection must be dimensioned accordingly and checked.
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 0,8 kV
Switching voltage
Min. at 10mAmin.12 V
Switching current
Min. at 24 Vmin.1 mA
Degree of contamination (external, according to EN 60947-1)
Industry 3
Connecting cable8x0.5mm? + 8x0.14mm? 4x0.5mm? screened + 4x0.5mm? unscreened + 8x0.14mm? unscreened. Outer screen over everything.

Miscellaneous

Additional feature
Version2 illuminated buttons (+ and -)

Reliability values acc. to EN ISO 13849-1

Enabling switch
B10D 0,5 x 106
