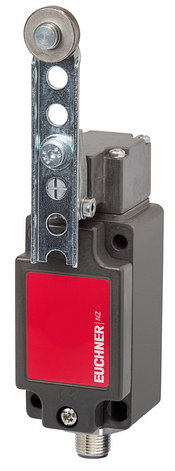

136864 | NZ2PS-538SEM5C2334

136864 | NZ2PS-538SEM5C2334, фото 2
Описание
Информация для заказа

Техническая спецификация в PDF

Mechanical values and environment

Housing materialAnodized die-cast alloy
Weight
Net 0,3 kg
Ambient temperature -25 ... 80 °C
Degree of protectionIP67
Mechanical life 30 x 106
Contact materialSilver alloy, gold flashed
Switching principleSlow-action switching contact
Installation positionAny
Number of door position positively driven contacts 2
Connection
1 xPlug connector M12 Position switch with plug connector SEM5, pin 5 not leading
Approach speed
max. 0,5 ... 30 m/min
Actuating element
Plain bearing metalLever arm adjustable d roller = 18 mm length 28 - 78 mm
Actuating forcemin.15 N

Electrical connection ratings

Rated thermal current Ith 4 A
Utilization category according to EN 60947-5-1
AC-154A 30V
DC-134A 24V
Short circuit protection according to IEC 60269-1
(Fuse)4A gG
Rated insulation voltage Ui 50 V
Rated impulse withstand voltage Uimp 1,5 kV
Switching current
Min. at DC 24V 1 mA

Miscellaneous

Additional featureHousing without earth conductor! All the electrical connections must either be isolated from the mains supply by a safety transformer according IEC 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent isolation measures.
C numberWith connection for ET200 pro-modules, i.e. earth conductor not fitted, pin 1-4 first pos. driven NC contact, pin 2-5 second pos. driven NC contact

Reliability values acc. to EN ISO 13849-1

Monitoring of the safety guard position
B10D 20 x 106
