Mechanical values and environment | |
|---|---|
| Material | Fiber glass reinforced plastic |
| Weight | |
| Net | 0,5 kg |
| Degree of protection | IP65 |
| Contact material | Au |
| Connection | |
| 2x cable entries M20 | |
| Plug-in and soldered connection 2.8x0.8 | |
Electrical connection ratings | |
| Operating current | 1 ... 100 mA |
| Operating voltage DC | 5 ... 35 V DC |
| Connection cross-section | 0,2 ... 1,5 mm? |
| Controls and indicators | |
| Breaking capacity | max.0,25 W |
| Power supply LED | 24 V DC |

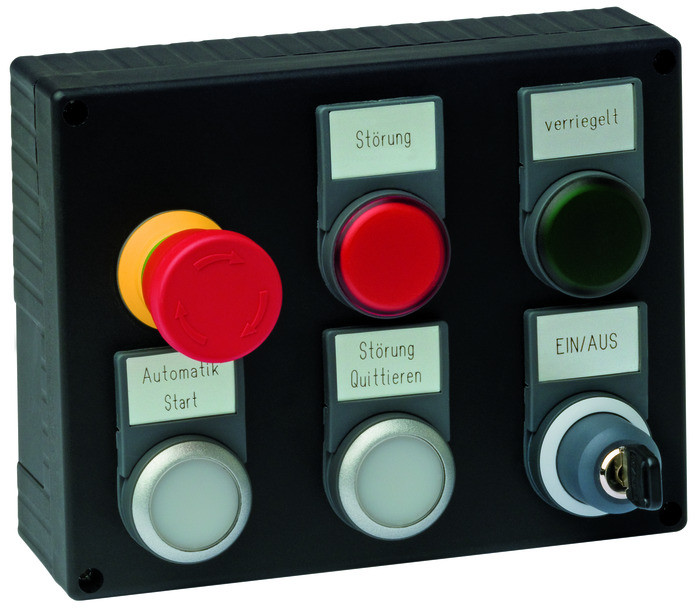

Controls and indicators | |
| Assignment diagram | C2 |
| Control/indicator | |
| Position 10 | |
| Version | Emergency stop |
| Special features | With auxiliary contact |
| Color | |
| Switching element | 2 pos. driven NC + 1NO |
| Slide-in label | |
| Control/indicator | |
| Position 11 | |
| Version | Illuminated push buttons |
| Special features | |
| Color | Red |
| Switching element | 1NO |
| Slide-in label | |
| Control/indicator | |
| Position 12 | |
| Version | Illuminated push buttons |
| Special features | |
| Color | white |
| Switching element | 1NO |
| Slide-in label | |
| Control/indicator | |
| Position 13 | |
| Version | Blind plug |
| Special features | |
| Color | |
| Switching element | |
| Slide-in label | |
| Control/indicator | |
| Position 14 | |
| Version | Illuminated push buttons |
| Special features | |
| Color | Blue |
| Switching element | 1NO |
| Slide-in label | |
| Control/indicator | |
| Position 15 | |
| Version | Illuminated push buttons |
| Special features | |
| Color | Yellow |
| Switching element | 1NO |
| Slide-in label | |
Miscellaneous | |
| Additional feature | |
| Incl. 7 flexible wire compl. 0.34 mm? - red | |
| Incl. 7 flexible wire compl. 0.34 mm? - blue | |
| Incl. 16 flexible wires compl. 0.34 mm? - black | |
| Incl. 6 cable straps | |
| Incl. cover set ID. No. 120344 | |
| Slide-in label | |
| Acknowledge protection zone | |
| Safety door request | |
| Acknowledge EMERGENCY STOP | |
| WZW start | |
| 4 pcs. without marking | |
