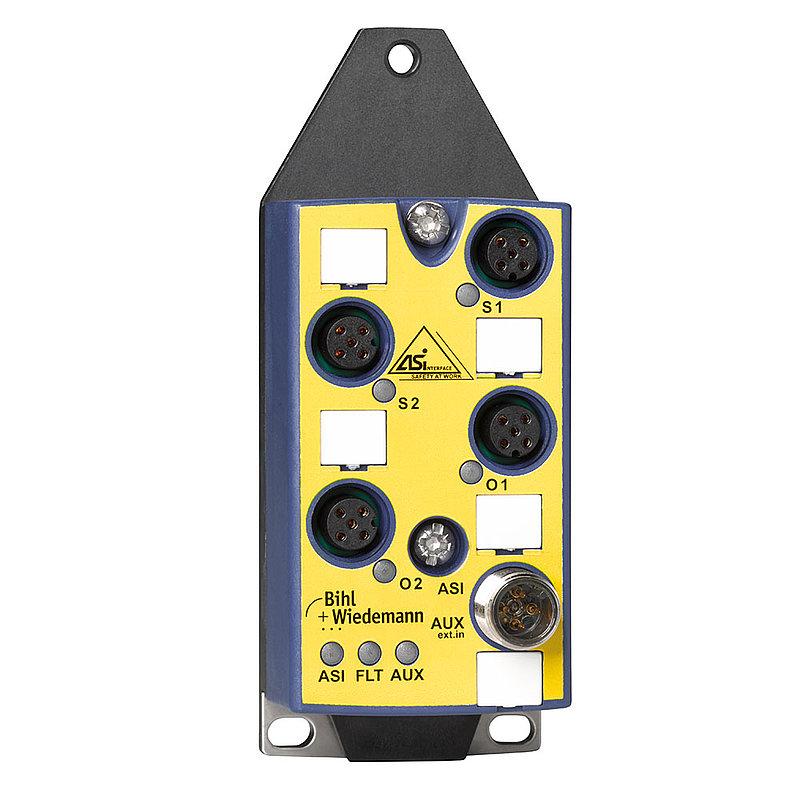

ASi Safety Input Module, IP67, M12, 1SI/2O



ASi Safety Input Module in IP67, with 4 x M12 sockets, 1 x 2 channels safe input (SIL 3, cat. 4) for floating contacts, 2 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of AUX, periphery connection via 4 x M12 sockets, 5 poles, length of connector caИли отправьте нам запрос наd outputs, ASi connection via M12 plug, 1 single slave

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Type			IP67, 4 x M12, Safety
Housing			4 x M12
Protection rating			IP67
Inputs Safety, SIL 3, Cat. 4			1 x 2 channels
Inputs digital, EDM			-
Outputs Safety, SIL 3, cat. 4			-
Outputs digital			2 x electronic
Safety signal inputs			floating contacts
Input voltage (sensor supply)			out of ASi
Output voltage (actuator supply)			out of AUX
Length of connector cable			I/O: max. 15 m
PCB connection			-
Connection			4 x M12 sockets, 5 poles
M8/M12 wiring			-
Round cable			-
ASi connection			ASi via M12
ASi address			1 Single address
Coating			-
Flat design, installation in cable duct possible			-
Special function			-
