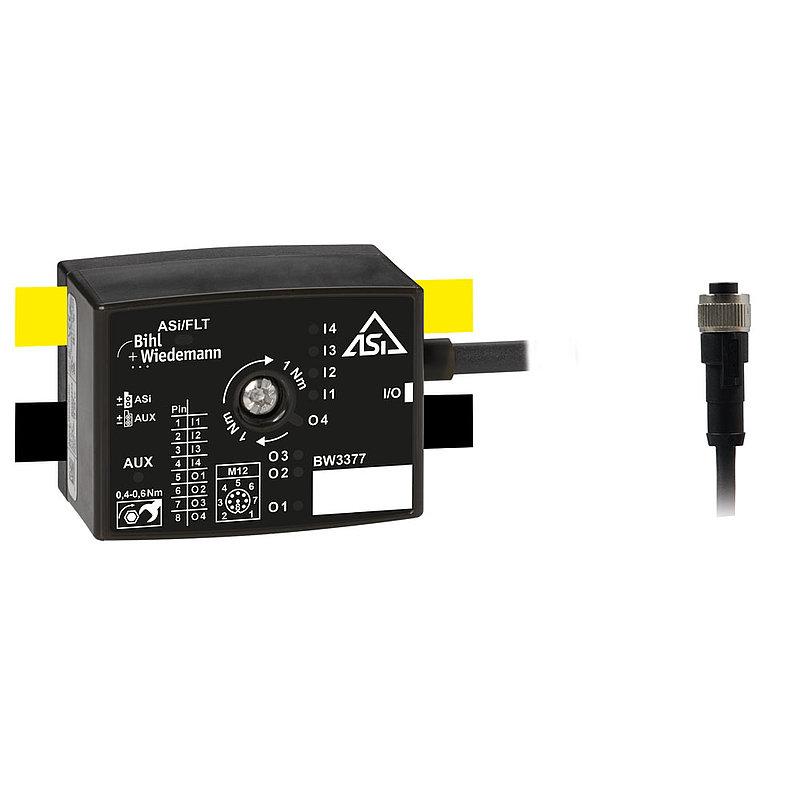

Active Distributor ASi, IP67, 4I/4O



Active Distributor ASi, IP67, housing depth 35 mm, 4 digital inputs, 4 digital outputs, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, periphery connection via 1 x M12 cable socket, straight, 8 poles, cable length 1 m, flat design, installation in cable duct possible (installation depth ≥ 35 mm), LED, connections for 1 x ASi and 1 x AUX profile cables, ASi connection via profile cable and piercing technology, 1 AB slave

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Type			Active distributor ASi
Housing			depth: 35 mm
Protection rating			IP67
Inputs Safety, SIL 3, Cat. 4			-
Inputs digital, EDM			4
Outputs Safety, SIL 3, cat. 4			-
Outputs digital			4 x electronic
Safety signal inputs			-
Input voltage (sensor supply)			out of AUX
Output voltage (actuator supply)			out of AUX
Length of connector cable			-
PCB connection			-
Connection			1 x M12 cable socket, straight, 8 poles
M8/M12 wiring			-
Round cable			1 m
ASi connection			ASi profile cable
ASi address			1 AB address
Coating			-
Flat design, installation in cable duct possible			yes, depth: 35 mm
Special function			to connect Euchner MGB to ASi
