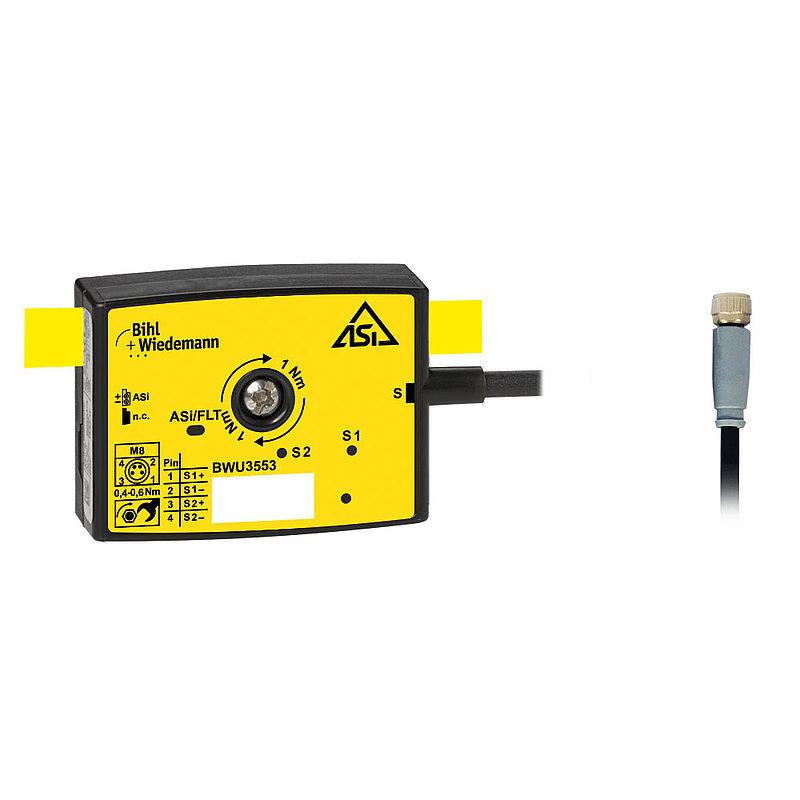

Active Distributor ASi Safety, IP67, 1SI



Active Distributor ASi Safety, IP67, housing depth 19 mm, 1 x 2 channels safe input (SIL 3, cat. 4) for floating contacts, input voltage/sensor supply out of ASi, periphery connection via 1 x M8cable socket, straight, 4 poles, cable length 0,20 m, flat design, installation in cable duct possible (installation depth ≥ 19 mm), connection for 1 x ASi profile cable, ASi connection via profile cable and piercing technology, 1 single slave To connect Sick RE13-SA84 / RE13-SAC / RE23-SAC / RE23-SA84 non-contact magnetic safety switches to ASi.

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Type			Active distributor ASi Safety
ASi-5/ASi-3			ASi-3 compatible
Housing			depth: 19 mm
Protection rating			IP67
Inputs Safety, SIL 3, Cat. 4			1 x 2 channels
Inputs digital, EDM			-
Outputs digital			-
Safety signal inputs			floating contacts
Input voltage (sensor supply)			out of ASi
Output voltage (actuator supply)			-
Connection			1 x M8 cable socket, straight, 4 poles
Round cable			0,20 m
Flat design, installation in cable duct possible			yes, depth: 19 mm
LED status display			yes
Profile cable connection			1 x ASi
ASi connection			ASi profile cable
ASi address			1 Single address
Special function			to connect Sick RE13-SA84 / RE13-SAC / RE23-SAC / RE23-SA84 to ASi
