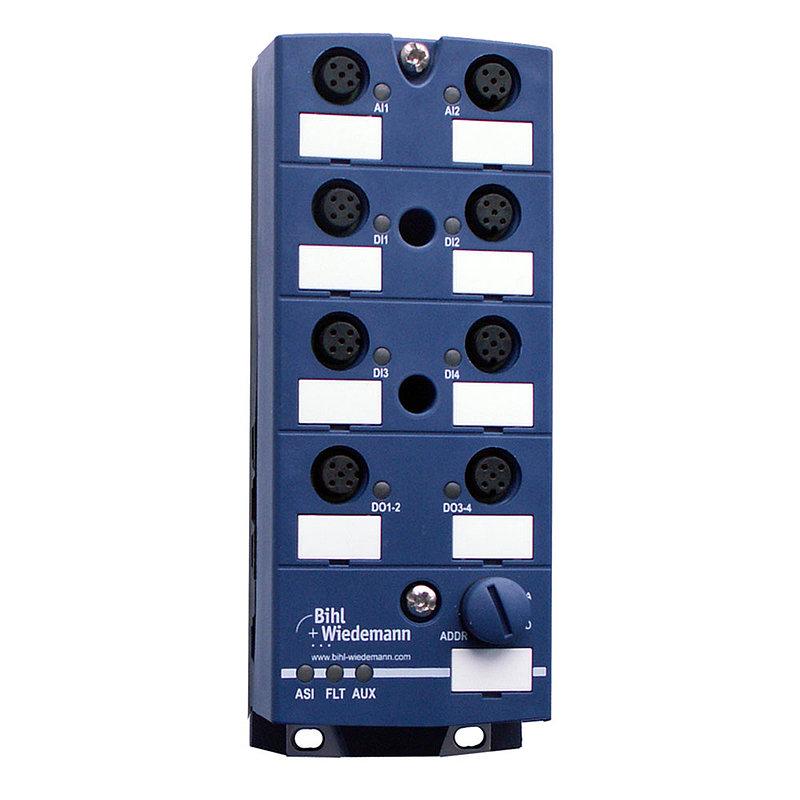

ASi Analog Input Module, IP67, M12, 2AI (Pt100)/4I/4O



ASi Analog Input Module in IP67, with 8 x M12 sockets, 2 analog inputs (Pt100), 4 digital inputs, 4 digital outputs, signal at pin2/pin4, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, periphery connection via 8 x M12 sockets, 5 poles, ASi connection via profile cable and piercing technology, 2 AB slaves The substructure module is not included in the scope of delivery.

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Type			IP67, 8 x M12
ASi-5/ASi-3			ASi-3 compatible
Housing			8 x M12
Protection rating			IP67
Primary application			-
Flat design, installation in cable duct possible			-
Inputs digital			4
Inputs Safety, SIL 3, Cat. 4			-
Outputs digital			4 x electronic
Inputs analog			2 x Pt100
Outputs analog			-
Safety signal inputs			-
M8/M12 wiring			Signal at pin2/pin4
Input voltage (sensor supply)			out of AUX
Output voltage (actuator supply)			out of AUX
Connection			8 x M12 sockets, 5 poles
Round cable			-
ASi connection			ASi profile cable
ASi address			2 AB addresses
Special function			-
