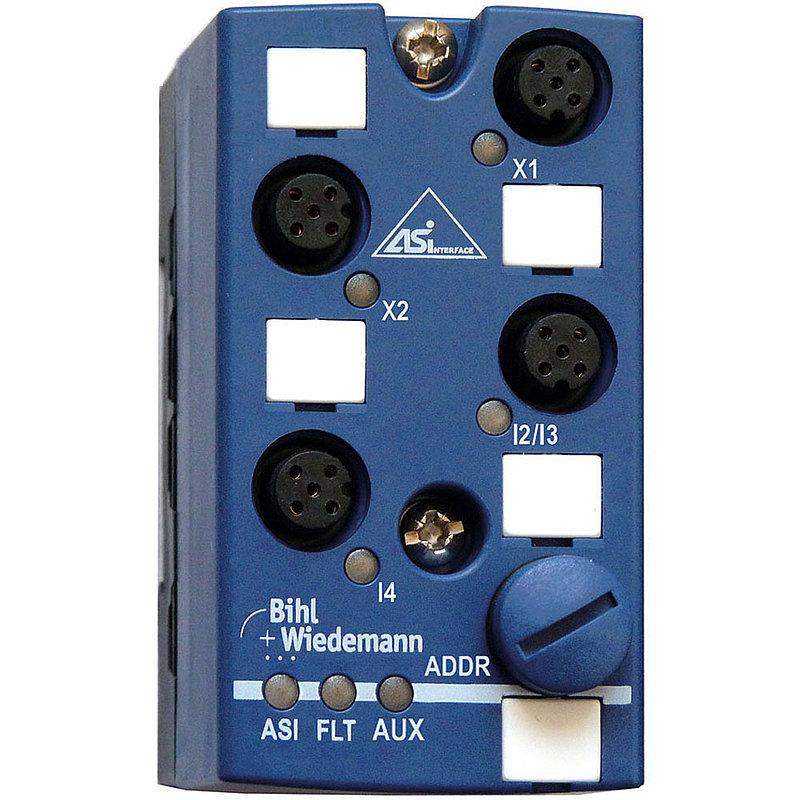

ASi Motor Module, IP67, M12 for Lenze Smart motor, 4I/3O



ASi Motor Module in IP67, with 4 x M12 sockets for 1 x Lenze Smart motor, 4 digital inputs, 3 digital outputs, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, periphery connection via 4 x M12 sockets, 5 poles, ASi connection via profile cable and piercing technology, 1 AB address 2 x M12 connections compatible with Lenze Smart Motor 2 x M12 connections for upt to 3 additional sensorsThe substructure module is not included in the scope of delivery.

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Type			IP67, 4 x M12
ASi-5/ASi-3			ASi-3 compatible
Housing			4 x M12
Protection rating			IP67
Drive			Lenze Smart Motor
Number of Drives			1
Line protection fuse			no
Flat design, installation in cable duct possible			no
Inputs digital			3
Outputs digital			-
Input voltage (sensor supply)			out of AUX
Output voltage (actuator supply)			out of AUX
Connection			4 x M12 sockets, 5 poles
Round cable			no
ASi connection			ASi profile cable
ASi address			1 AB address
